DIN rail dimmer EK-GC1-TP

KNX

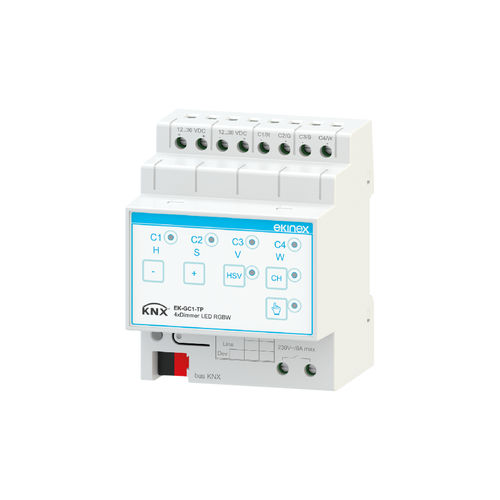

4-fold KNX dimmer-actuator for switching and dimming of LED RGBW lighting devices. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation. ON/OFF switching and brightness regulation of single or groups of lighting devices Logical gates and forced mode for each channel Manual control by membrane pushbuttons Status feedback of output channels through LEDs Switching pushbutton manual/automatic mode Block function for each channel Time scheduling: switching delay for on and off Integration in RGBW scenarios The ekinex® EK-GC1-TP dimming actuator is an S-mode KNX rail mounting modular device for independent switching and dimming of low-voltage (12...30 Vdc) LED lighting devices in CV mode, with PWM modulation. The typical application is with LED strips used for bulk lighting or ambient scenic effects. Outputs can be managed: • as 4 independent channel (white or single color); • as 2 channels, each used for a “dual white” strip (cold and warm white tones); • combined, as a single RGB (+W) color channel. The device is equipped with an integrated bus communication module and is designed for rail mounting in distribution boards and cabinets. For its operation, the device receives command telegrams from the bus, sent by a KNX device (such as a pushbutton, a sensor or another switching or control device), that causes the switching or the dimming of the lamp of the connected lighting device. The manual operation of output channels is possible through the membrane pushbuttons on the front of the device.
