DIN rail dimmer EK-GF1-TP

KNX

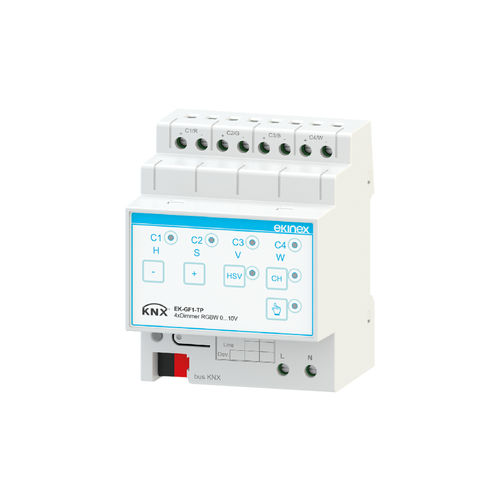

4-fold KNX dimmer-actuator for switching and dimming of ballast with 0-10V. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation. ON/OFF switching and brightness regulation of single or groups of lighting devices Logical gates and forced mode for each channel Manual control by membrane pushbuttons Status feedback of output channels through LEDs Switching pushbutton manual/automatic mode Block function for each channel Time scheduling: switching delay for on and off Integration in scenarios The ekinex® EK-GF1-TP dimming actuator is an S-mode KNX rail mounting modular device for independent switching and dimming of low-voltage LED lighting devices through the control of power drivers having a highimpedance input with a 0...10 Vdc range. The outputs can be managed: • as 4 independent channel (white or single color); • as 2 channels, each used for a “dual white” strip (cold and warm white tones); • combined, as a single RGB (+W) color channel. If necessary, it is possible to control devices other than lighting appareils, provided that thay are equipped with high-impedance control inputs. The device is equipped with an integrated bus communication module and is designed for rail mounting in distribution boards and cabinets. For its operation, the device receives command telegrams from the bus, sent by a KNX device (such as a pushbutton, a sensor or another switching or control device), that causes the switching or the dimming of the lamp of the connected lighting device. The manual operation of output channels is possible through the membrane pushbuttons on the front of the device.
