Spa UV water sterilizer HR UV-C SPA

Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 2
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 3
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 4
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 5
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 6
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 7
Spa UV water sterilizer - HR UV-C SPA - Elecro Engineering LTD - image - 8
Add to favorites
Compare this product

Characteristics

Applications
for spas

Description

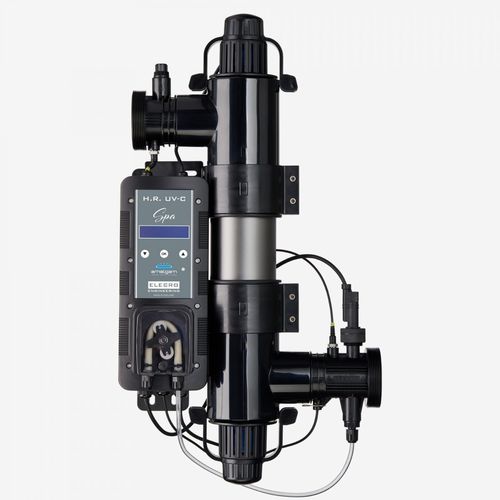

Using the latest amalgam lamp technology, the small, yet powerful H.R.UV-C Spa, offers the highest possible performance over a wide range of temperatures with a consistent output of UVC. Features & Benefits • Highest UV reflective index on the market equating to supreme efficiency • E-PTFE reach chamber is extremely repellent, maintaining UV reflectivity • Up to 95% reflection amplifying the exposure of microorganisms to UV • No harmful gases or by-products produced • Neutralises bacteria, viruses, algae and fungai that traditional chemicals cannot • Optional smart peristaltic dosing system for chlorine/hydrogen peroxide (Pro model only) • Powerful sterilisation and eliminates the smell of chlorine • Average lamp life expectancy: Up to 2 years • Equipped with intelligent lamp life indicator (Classic & Pro models only) • Sea and salt chlorinated water compatible • Models: Standard, Classic and Pro Power Supply : Single phase 100V~240V Min. Flow Rate : 1.5m³/h Max. Flow Rate : 12,000 litres per hour; 12m³/h Max. Pool Size : 30,000 litres; 30m³ Max. Power Consumption : 40W Lamp : Amalgam Lamp Life : Up to 14,000 hours Dosing Rate : Exceeds the equivalent of 30mj/cm² at max. flow rate Ingress Protection Rating : IP65 Frequency : 50/60 Hz Working Pressure : 3 Bar maximum Water Connections : 2″ / 63mm stepped ABS unions + reducers 1½” / 50mm Salt Water : 100% sea and salt chlorinated water safe Mounting : Vertical or horizontal wall mounting Oxidisation Process : UV
