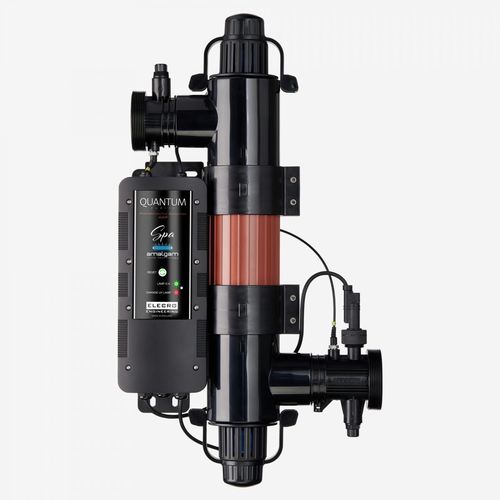

Built with the same DNA as it’s Quantum family, the new Quantum Spa has the added benefit of amalgam lamp technology, offering the best performance over a wider range of temperatures with a consistent UVC output, keeping your spa looking clean, fresh and crystal clear.
Features & Benefits
Photocatalytic Ti02/Mo oxidiser and clarifier
Combined photocatalytic, hydroxyl radical and UV technology
Eliminates contaminants, leaving water looking clean, fresh and crystal clear
Reduces the need for chemicals in the spa
Keeps your family safe from dangerous microorganisms such as cryptosporidium, adenoviruses and naegleria fowleri
Optional smart peristaltic dosing system for chlorine and hydrogen peroxide (Pro model only)
Powerful sterilisation and eliminates the smell of chlorine
Average lamp life expectancy: 2 years
Equipped with intelligent lamp life indicator
Sea and salt chlorinated water compatible
Models: Classic and Pro
Power Supply -
Single Phase 100V~240V
Min. Flow Rate -
1.5m³/h
Max. Flow Rate -
10,000 litres per hour; 10m³/h
Max. Pool Size -
35,000 litres; 35m³
Max. Power Consumption -
40W
Lamp -
Amalgam
Lamp Life -
14,000 hours
Dosing Rate -
Exceeds the equivalent of 30mj/cm² at max. flow rate
Ingress Protection Rating -
IP64
Frequency -
50/60 Hz
Working Pressure -
3 Bar maximum
Water Connections -
2"/63mm stepped ABS unions + reducers 1½"/50mm
Salt Water -
100% sea and salt chlorinated water safe
Mounting -
Vertical or horizontal wall mounting
Oxidisation Processes -
Quantum photocatalytic oxidiser (PCO) & hydroxyl radicals (HO)
