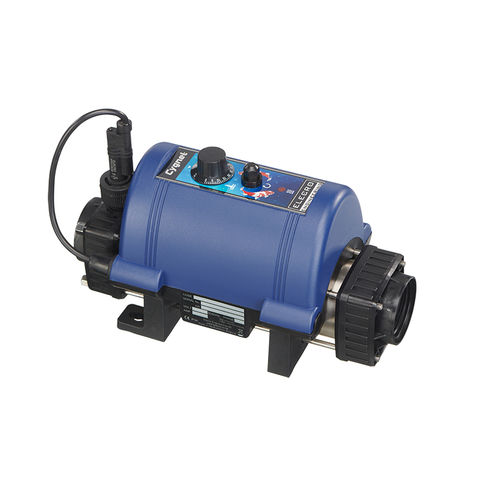

Electric pool heater NANO CYGNET

Specifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating. Features & Benefits • Various power options ranging from 1-kW to 4-kW • Easy installation, fully equipped and pre-wired • Robust, durable construction • Ultra-reliable flow switch allows safe operation • Supplied with temperature thermostat and overheating sensor • Compact, durable design • Analogue control with 1.2°C differential • Titanium flow tube and titanium heating element • Can be floor or vertically wall mounted • Vortex, long life, stay clean heating element technology • 100% efficiency throughout the product life • Silent operation Power Supply : 220-240V single phase Flow Requirements : Minimum flow: 1m³/h Maximum flow: 17m³/h Heating Element : Grade 1 titanium Flow Tube : Grade 1 titanium Control Thermostat : Analogue: 0>45°C (1.2°C differential) Safety Thermal Cut Out : 60°C (manual reset) Flow Switch : Rhodium tipped reed switch with titanium fulcrum pin Relay : Surface mount DPDT Finder 66.82.8.230.0000 Seals : High temperature special formula EPDM ferrules, TPE end fitting gaskets Water Connections : 1.5″ BSP female thread supplied with 1½” / 50mm stepped ABS unions for rigid pipe and 1½” / 1¼” stepped hose tails for flexible pipe Ingress Protection Rating : IP44 Frequency : 50/60 Hz Working Pressure : 4 bar maximum Mounting : Floor or wall mounting
