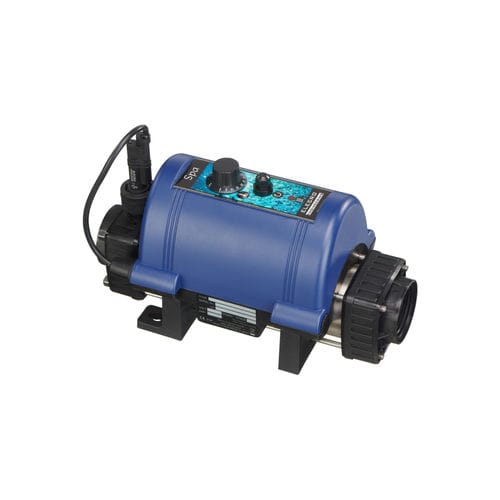

Electric spa heater NANO SPA

Provides efficiency, safety and above all reliability to effortlessly heat your water to the desired temperature, the Nano SPA heater is an ideal solution for spas. Features & Benefits • Available in 8 sizes from 1-kW up to 8-kW • Easy installation, fully equipped and pre-wired • Robust, durable construction • Ultra-reliable flow switch allows safe operation • Supplied with temperature thermostat and overheating sensor • Compact, durable design • Analogue control with 1.2°C differential • Titanium flow tube and titanium heating element • Can be floor or vertically wall mounted • Vortex, long life, stay clean heating element technology • 100% efficiency throughout the product life • Silent operation Power Supply : 220-240V single phase, 380-415V three phase Flow Requirements : Minimum flow: 1m³/h Maximum flow: 17m³/h Heating Element : Grade 1 titanium Flow Tube : Grade 1 titanium Control Thermostat : Analogue: 0>45°C (1.2°C differential) Safety Thermal Cut Out : 60°C (manual reset) Flow Switch : Rhodium tipped reed switch with titanium fulcrum pin Relay : Surface mount DPDT Finder 66.82.8.230.0000 Seals : High temperature special formula EPDM ferrules, TPE end fitting gaskets Water Connections : 1.5″ BSP female thread supplied with 1½” / 50mm stepped ABS unions for rigid pipe and 1½” / 1¼” stepped hose tails for flexible pipe Ingress Protection Rating : IP44 Frequency : 50/60 Hz Working Pressure : 4 bar maximum Mounting : Floor or wall mounting
