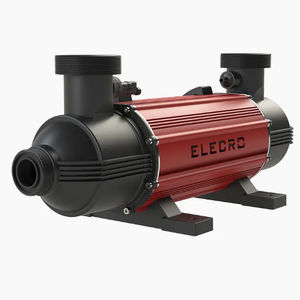

Pool heat exchanger SST

The SST (Shell & Spiral Tube) is a titanium spiral tube heat exchanger with a rigid specially formulated shell that has a high-pressure tolerance and is the perfect solution for demanding applications. Features & Benefits • Four models ranging from 36-kW to 95-kW • Special formulated polymer • Coiled titanium primary casing • Salt and sea water compatible • 30 bar (primary) and 3 bar (secondary) pressure tolerance • Low pressure drop • With optional Smart Touchscreen Controller & Booster Pump • Temperature and flow sensor port • Floor and wall mountable Flow Tube : Primary Circuit – Coiled Titanium Secondary Circuit – Special Formulated Polymer Water Connections : Primary Circuit – 1″ BSP Male Fitting Secondary Circuit – 2½” / 63mm stepped ABS unions for rigid pipe connection with 1½” / 50mm reducers Working Pressure : Primary Circuit – 30 bar maximum Secondary Circuit – 3 bar maximum
