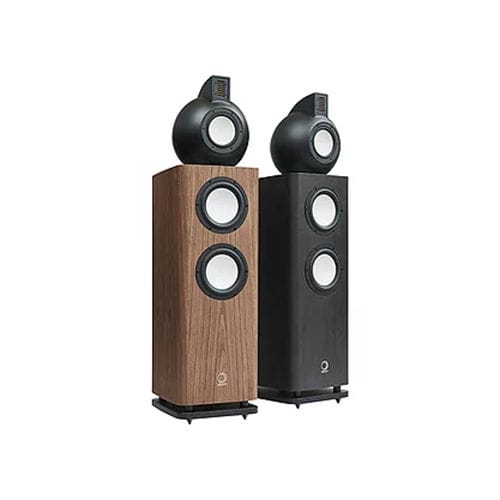

Floor-standing speaker LEGACY 3230

residentialindooraluminium

The Legacy 3230 is a 3-way loudspeaker, the column of which houses the subwoofer with two 21cm (8in) pulp cellulose drivers surfaced with aluminium; surmounted by a resin sphere housing the 16cm ceramic midrange driver and a wide dispersion AMT ribbon tweeter. The Legacy range perfectly embodies the brand's HIFI know-how! To design this new range, Elipson has taken advantage of the innovations developed in-house for more than 60 years through emblematic models such as the La Religieuse loudspeaker, the 4050 or 1303 model, combined with the modern materials of our time. Type : Floorstanding speaker 3 way Bass-reflex - Sphere Power : 200 W RMS Drive-units : Woofer : 2 x 8” cone cellulose pulp with aluminium layer Midrange : 6” pure ceramic Tweeter Ribbon-AMT Frequency response : 25-30000 Hz (+/- 3 dB) - 38 kHz @ -5dB Sensibility : 91 dB/1W/1m Nominal impedance : 4 Ohms (Min : 2,9 Ohm @ 103 Hz) Connectors : Audiophile quality for bi-wiring or bi-amplification Cut-off frequencies : 400 & 3200 Hz Crossover slopes : High Pass : 12 dB/octave with impedance equalization - 24 dB acoustics Band Pass : 12 dB/octave Low Pass : 12 dB/octave Cabinet : MDF 25-30mm with braces (3) coupling woofers cabinet with structure Resin spherical enclosure, filled with Silica Bass-reflex type : Down firing - flared shape Dimensions : W347 x H1340 x D450 mm Weight : 50 kg Finishes : Silver oak or walnut + black satin - Sphere: black satin
