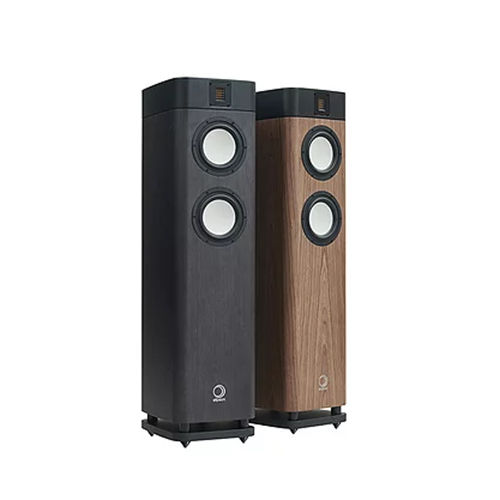

The Legacy 3220 is an elegant 2 1/2 way floorstanding loudspeaker with two 16.5 cm mid-woofers for the bass and midrange frequencies, topped with a wide dispersion AMT tweeter
The Legacy range perfectly embodies the brand's HIFI know-how! To design this new range, Elipson has taken advantage of the innovations developed in-house for more than 60 years through emblematic models such as the La Religieuse loudspeaker, the 4050 or 1303 model, combined with the modern materials of our time.
Fast, bright, perfect extension of the extreme frequencies, expressive midrange, airy and realistic sound image are all qualities that characterise Legacy speakers. In the end, they forget themselves and give way to musical pleasure close to reality.
Type :
Floorstanding speaker 2.5 way Bass-reflex
Power :
150 W RMS
Drive-units :
Mid-woofer : 2 x 6.5” aluminium cone with ceramic layer
Tweeter Ribbon-AMT
Frequency response :
35-30000 Hz (+/- 3 dB) - 38 kHz @ -5dB
Sensibility :
89 dB/1W/1m
Nominal impedance :
6 Ohms (Min : 4,4 Ohm @ 168 Hz)
Connectors :
Audiophile quality for bi-wiring or bi-amplification
Cut-off frequencies :
600 & 2800 Hz
Crossover slopes :
High Pass : 18 dB/octave with impedance equalization
Low Pass (Upper Driver) : 12 dB/octave with Notch circuitry
Low Pass (Lower Driver) : 6 dB/octave
Cabinet :
MDF 25-30mm with braces (3) coupling woofers cabinet
with structure
Resin spherical enclosure, filled with Silica
Bass-reflex type :
Down firing - flared shape
Dimensions :
W347 x H1340 x D450 mm
Weight :
50 kg
Finishes :
Silver oak or walnut + black satin - Sphere: black satin
