Door sliding system EL 6700
glass door

door sliding system
door sliding system
door sliding system
Add to favorites
Compare this product


Characteristics

Applications
door, glass door

Description

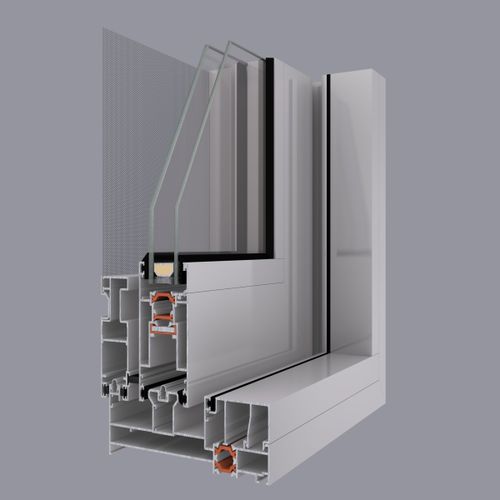

The first Lift & Sliding system certified at the German institute ift Rosenheim, for WK2 burglary resistance and for water tightness up to a 9 Beaufort storm. Certified burglary resistance of WK2 category. Excellent level of wind pressure resistance, air permeability and particularly of water tightness until 300 Pa for sliding frame with fixed part certified in the biggest dimensions (3.5m x 2.3m), that is equivalent to a 9 Beaufort storm with 75-88 km/h wind speed, causing damages. Main characteristics Available in sliding variant but also in lift & sliding variant for a better tightness. Firm system with elegant, frugal shape Thermal transmittance rate Uf= 3,7 W/(m2*K) Certified burglar resistance WK2 (Ift Rosenheim) Ideal for large frames (width up to 4 m for double sash frames) A slide & lift mechanism (90 and 150kg) or a simple sliding mechanism can be added optionally High level of thermal insulation thanks to the use of glass-fiber reinforced polyamide of 24mm, 22mm & 18mm Specially designed sealing gaskets for door frames, hook dowels and dowels for double-sash frames. Exceptional level of water tightness until 300 Pa (9 Beaufort storm) for sliding frame with fixed part, certified in the biggest dimensions 3.5m x 2.3m (Ift Rosenheim) Smooth sliding thanks to the use of an inox track Maximum glazing thickness 24mm. Available only in linear shape.
