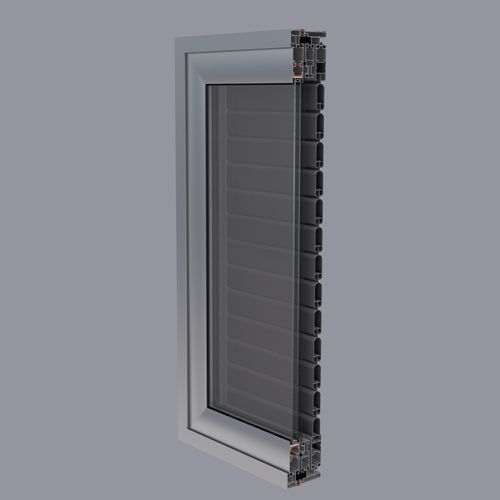

Sliding shutter EL 6500
aluminumwindowthermally-insulated

sliding shutter
sliding shutter
Add to favorites
Compare this product


Characteristics

Type
sliding
Material
aluminum
Product applications
window
Technical characteristics
thermally-insulated

Description

The ideal system for frames replacement! ELVIAL EL 6500 SMART SLIDE is a new thermal insulating sliding system, that offers increased possibilities for covering all types of sliding frames. It is ideal for frames replacement as it offers easy and fast construction, as well as installation. It is certified by the most reputable institute, Ift Rosenheim in Germany, with an excellent performance regarding thermal transmittance rate with a Uf value of 3,9 W / (m2 * k) for successive sashes construction. Available in sliding variant but also in lift & sliding variant for a better tightness. Firm system with elegant, minimal lines Thermal transmittance rate Uf= 3,9 W/(m2*K) for successive windows construction. Frame dimensions for in-wall sliding constructions from 77,3 mm for a sash+flyscreen construction and from 93,3 mm to 112,6 mm for sash+flyscreen+shutter construction A slide & lift mechanism (90 and 150kg) or a simple sliding mechanism can be placed High level of thermal insulation thanks to the use of glass-fiber reinforced polyamide of bars of 28 mm, 24 mm, 22 mm, 18 mm and 16 mm. Specially designed sealing gaskets for successive sashes constructions. Specially designed sealing parts for in-wall constructions. Smooth sliding thanks to the use of an inox track Innovative design of joint corners for a solid frame construction Maximum glazing thickness 27mm. Available only in linear shape.
