Entrance mat for public buildings SPECIAL FRAME WITH SUBSTRUCTURE A

polypropylenealuminumdust control

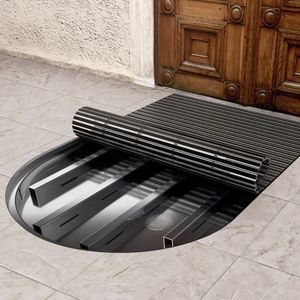

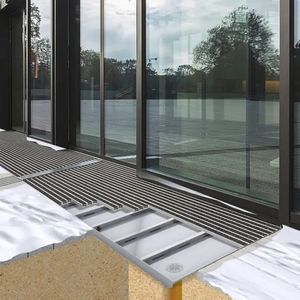

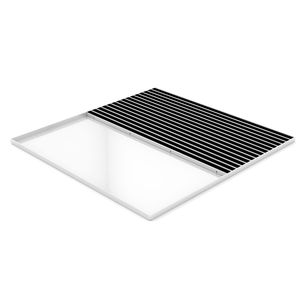

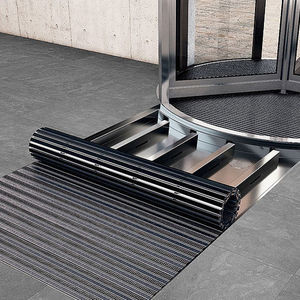

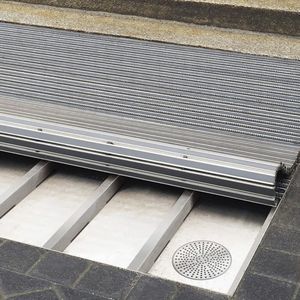

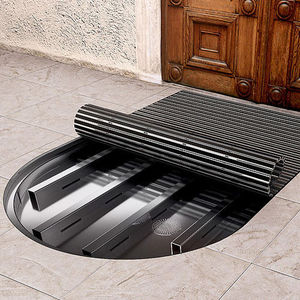

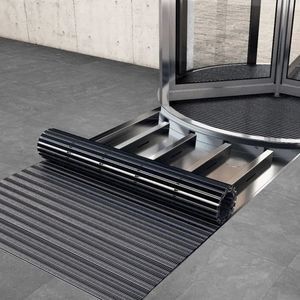

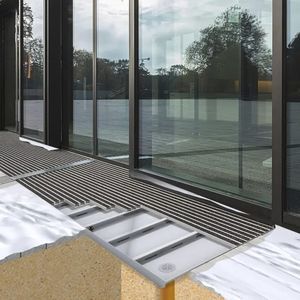

A particularly effective alternative to dirt collection wells, emco substructures are able to handle even extreme amounts of dirt with particularly long cleaning intervals. Versions B and C are available in fixed installation heights, while version A allows for flexible heights up to a maximum of 280 mm. emco substructures are designed for use in combination with the more resilient emco MARSCHALL and PLAZA entrance mats. The solid structure of the PLAZA types allows them to be laid without a grid. Installation frame material 1.4301 (V2A) Frame dimensions (H x W x D) in mm 46 x 25 x 3 Construction heights in mm 195 to 280 Distance in mm 700 Technical details Supporting substructure (hot-dip galvanised) consisting of grids and tube profiles screwed to the underside; also featuring construction height-adjustable supports made from galvanised steel. Height (mm) 195 - 280
