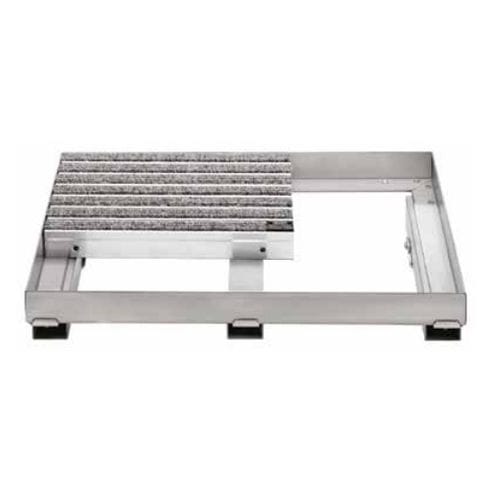

Public building entrance mat SPECIAL FRAME WITH SUBSTRUCTURE C

polypropylenealuminumdust control

A particularly effective alternative to dirt collection wells, emco substructures are able to handle even extreme amounts of dirt with particularly long cleaning intervals. Versions B and C are available in fixed installation heights, while version A allows for flexible heights up to a maximum of 280 mm. emco substructures are designed for use in combination with the more resilient emco MARSCHALL and PLAZA entrance mats. The solid structure of the PLAZA types allows them to be laid without a grid. Installation frame material 1.4301 (V2A) Frame dimensions (H x W x D) in mm 25 x 28 x 3 Construction heights in mm 45 mm (20 x 30 x 2 mm rectangular tube) 55 mm (30 x 40 x 2 mm rectangular tube) 65 mm (40 x 30 x 2 mm rectangular tube) 75 mm (50 x 50 x 2 mm square tube) 105 mm (80 x 40 x 2 mm rectangular tube) Distance in mm 300 Technical details Supporting substructure (hot-dip galvanised), consisting of box sections screwed to the underside. Height (mm) 45, 55, 65, 75, 105
