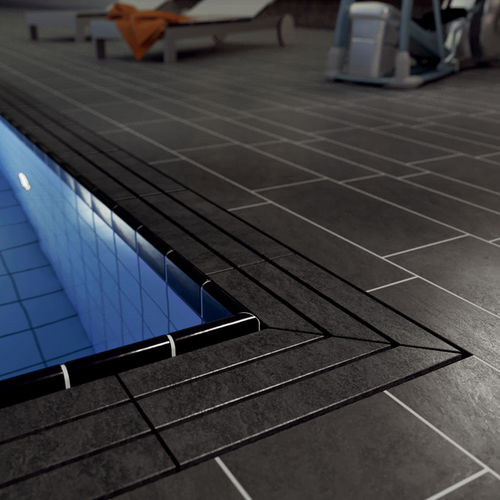

Plastic overflow grating 723 DESIGN GE

pool

Material - High quality, extremely hard-wearing plastic, with UV absorber. Entirely corrosion-free and resistant to chlorine, sea water and spa water. Support chassis - Full profile Upper profile surface incl. recesses in the grating, prepared for the application of tiles on-site (only tiles that satisfy non-slip requirements in wet, barefoot areas in accordance with DIN 51097 must be used). Cut-outs underneath for low construction heights. Finish - Upper recesses in the plastic for gaps between tiles. Profile spacing: - < 8 mm according to DIN EN 16582-1 and DIN EN 13451-1. Connection - Plastic threaded rod with interim spacers. Variable grating width (mm) - Usage area - Private swimming pools with overflow channels. Dimensions - Mitred corner self-supporting. Height incl. subsequent tiling approx. 22-32 mm (subject to the tiles and bar height of the synthetic matting). Total heights of less than 28 mm are achieved with notches indicating the height on both sides of the plastic insert (optional). Properties - Aesthetically pleasing Corrosion-free
