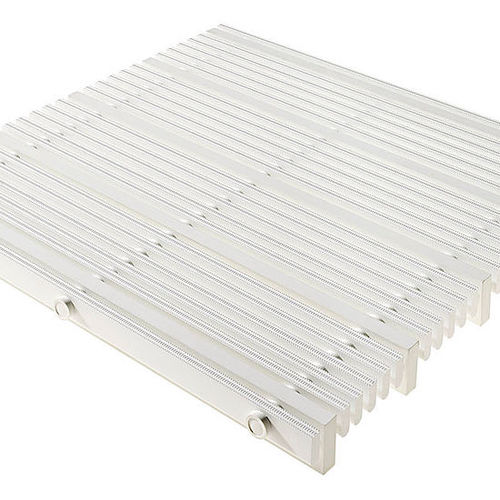

Plastic grating 775

for drain channelsfor swimming poolsfor shower

Material - High quality, extremely hard-wearing plastic, with UV absorber. Entirely corrosion-free and resistant to chlorine, sea water and spa water. No need for any metal parts; surface enclosed on all sides to provide maximum hygiene. Support chassis - Full profile (27 x 10 mm) At 250 mm intervals, with integrated GFK support profiles (full profile, 45 x 14 mm). Finish - Flat upper profile surface with safety profile seal (SPS). Profile spacing: - < 8 mm in accordance with DIN EN 13451-1 and DIN EN 16582-1 (to prevent areas where fingers could become trapped) Height (mm) - 45 mm Connection - Fibre-glass reinforced polyester pipes as connection elements Slip resistance - Non-slip in accordance with DIN 51097, classification C - tested by the "Institut der Säurefliesner-Vereinigung" (Säurefliesner consortium) Variable grating width (mm) - <1000 Comment - Self-supporting (GFK profile) Special shapes - Yes Water drainage - Yes Usage area - Public shower areas Barrier-free shower areas Footbaths Dimensions - Produced to fit width and depth perfectly without the need for alignment profiles Properties - Aesthetically pleasing Corrosion-free Good water drainage
