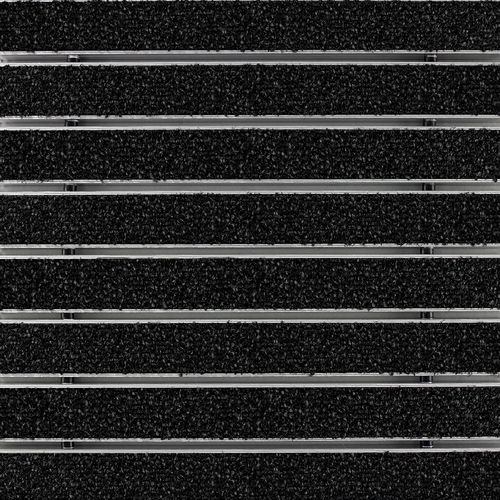

Apartment entrance mat emco DIPLOMAT

for medical usefor domestic usefor office

Product description
The Premium entrance mat with the durable Largos insert is highly abrasion-resistant and an effective solution for reducing fine and wet dirt. With PVC-free Pura Backing and high-quality ECONYL yarn, the Largos insert provides a sustainable option for medium to heavily trafficked entrance areas.

Features

• Durable Largos insert: efficient removal of fine and wet dirt
• Insert material: 100% polyamide ECONYL (recycled yarn)
• Backing: Pura Backing (PVC-free)
• Slip resistance: R 12 according to DIN 51130
• Fire performance: insert available in Cfl-s1 according to EN 13501
• REACH compliant
• Suitable for indoor and covered outdoor use (zone 1+2)
• Commercial grade, use class 33 according to DIN EN 1307
• 5-year warranty for premium inserts

Available variants & options

• Approx. heights (mm): 12, 17, 22 (commonly used height: 22 mm; further variants per product specification)
• Colour (example on product page): 11.01 black
• Profile width: Large (profile width approx. 44 mm)
• Mat type: emco DIPLOMAT
• Insert type: Largos (Premium)
• Additional profiles: none (optional brush strip or scraper edge available)

Performance / Load capacity

• Roll-over and drive-over capability: shopping trolleys, prams, wheelchairs, transport trolleys
• Standard profile gap approx.: 5 mm, rubber spacers
• For revolving doors: available with bar gap of 3 mm according to DIN EN 16005
• Connection: plastic-coated steel cable

Delivery time
Delivery time: 5–7 working days ex works.

Additional information (table data)
Approx. height (mm): 12
17
22
Colour: 11.01 black
Roll-over and drive-over capability: shopping trolleys, prams, wheelchairs, transport trolleys
Standard profile gap approx.: 5 mm, rubber spacers
Revolving doors: available for revolving doors with 3 mm bar gap according to DIN EN 16005
Connection: plastic-coated steel cable
Profile width (mm): 44 mm
Weight (kg/m²): 8.9 / 9.5
Carrier profile: torsion-stiff aluminium with underside premium walking noise insulation
Carrier profile colour: anodised colours available at extra cost: EV3 Gold, C33 Medium Bronze, C35 Black or C31 Stainless Steel
Tread surface: Largos insert made of recycled ECONYL yarn with PVC-free Pura Backing backing coating
Slip resistance: R 12 according to DIN 51130
Fire behaviour: insert according to EN 13501 in Cfl-s1
Pile material: 100% polyamide ECONYL
Use class: 33 according to DIN EN 1307
Colour fastness to light ISO: good 5-6
Colour fastness to rubbing ISO: good 4-5
Colour fastness to water ISO: good 4-5
Bacterial reduction EHEC A: 11.9 %
Bacterial reduction Staphy: 45.0 %
Bacterial reduction Klebsi: 99.8 %
Application areas: medical practice, office and administration buildings, single-family house, hotel, kindergarten/daycare, multi-family house
Dirt capture zone: interior and covered exterior (zone 1+2)
Dirt type: removes fine and wet dirt by abrasion
Mat division according to factory standard: from a profile length of 3000 mm or a mat max weight of 30 kg; profile lengths from 2300 mm available at extra cost; mat division on customer request available.

Technical specifications

• Insert type: Premium (Largos)
• Insert material: 100% polyamide ECONYL (recycled yarn)
• Backing: Pura Backing (PVC-free)
• Profile width: Large ≈ 44 mm
• Construction heights: 12 / 17 / 22 mm (further variants per data sheet)
• Slip resistance: R 12 according to DIN 51130
• Fire performance: EN 13501 – insert Cfl-s1
• Carrier profile: torsion-stiff aluminium with premium walking-noise insulation
• Connection: plastic-coated steel cable
• Typical applications: indoor + covered outdoor (zone 1+2), commercial (class 33 according to EN 1307)
• Weight (kg/m²): approx. 8.9 / 9.5
