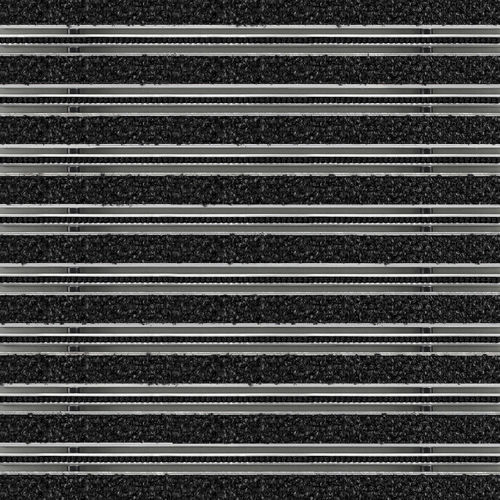

Kindergarten entrance mat emco DIPLOMAT

homefor hotelfor apartment

Description
The emco DIPLOMAT Premium entrance mat with the robust Largos insert is designed to reduce fine and damp dirt in indoor and covered outdoor entrances. The pile is produced from 100% ECONYL recycled polyamide and the mat is supplied with PVC-free Pura-Backing for improved sustainability. The optional brush strip profile increases coarse and fine dirt removal. Suited for buildings with normal to heavy foot traffic.

Key features

• Robust, highly abrasion-resistant Largos insert (Premium)
• Pile: 100% polyamide ECONYL (recycled yarn)
• Backing: Pura-Backing (PVC-free)
• Optional additional profile: brush strip for extra cleaning effect
• Available heights: approx. 17 mm and 22 mm
• Designed for normal to heavy footfall (use classification EN1307 – class 33)

Suitable for / Accessibility

• Usage area: Indoor and covered outdoor entrances (dirt zones 1+2)
• Typical applications: apartment buildings, family homes, hotels, kindergartens, medical practices, offices and administrative buildings
• Accessibility: suitable for hand trolleys, light shopping trolleys, prams and wheelchairs

Performance & Standards

• Flammability: insert classified Cfl-s1 according to EN 13501
• Use classification: EN 1307 – property suitable inlay 33
• Colour fastness to artificial light: good (5–6)
• Colour fastness to rubbing: good (4–5)
• Colour fastness to water (ISO): good (4–5)
• Guarantee: 5 years for the Premium range

Product details

• Approx. heights (mm): 17, 22
• Profile widths (mm): 27.5, 44 (designation: Normal / Large)
• Brush strip colour options: black, grey
• Standard profile clearance: approx. 5 mm with rubber spacers
• Connection: plastic-coated steel cable
• Profile width options and weights: weight approx. 9.6–10.7 kg/m² depending on profile
• Revolving door compatibility: profiles with 3 mm spacing available per DIN EN 16005
• Support chassis: rigid aluminium with premium sound-absorbing insulation on underside; anodised colours available at extra charge

Technical specifications

• Mat type: emco DIPLOMAT
• Insert style: Largos (robust, abrasion-resistant)
• Insert type: Premium
• Pile material: 100% polyamide ECONYL (recycled)
• Backing: Pura-Backing (PVC-free)
• Available heights: approx. 17 mm, 22 mm
• Available profile widths: 27.5 mm and 44 mm
• Weight: approx. 9.6–10.7 kg/m²
• Use classification EN 1307: class 33 (object, heavy)
• Flammability: insert Cfl-s1 (EN 13501)
• Typical collectable dirt: damp street dust, damp sand deposits, dust, hair, ash, textile fibres, small leaves and twigs
• Colour shown: 11.01 black (other colours available)
• Mat division: from profile length 3000 mm or max mat weight 30 kg; splits on request
