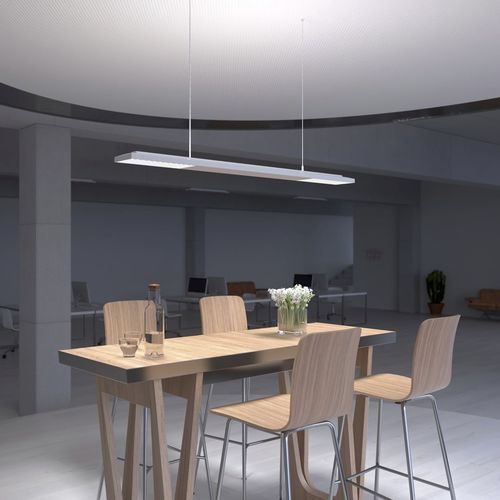

Hanging light fixture JILLY LINEAR

LEDlinearflat

Jilly linear is a pendant luminaire designed for efficient, standard‑compliant and ergonomic office lighting, combining high luminous efficacy with effective glare control and optional tunable white and uplight functions.

Special features

• Suitable for office workstations: designed for good glare control and high visual comfort; UGR used as a support for norm‑referenced lighting and to be applied depending on luminaire arrangement.
• Tunable White technology: indirect lighting colour temperature can be adjusted to support Human Centric Lighting concepts.
• Louvres for efficient visual comfort: anti‑glare louvres (emission angle 90°) available in black or silver to integrate with ceiling material and colour.

Product description

• Jilly pendant luminaires specialise in particularly efficient, standard‑compliant lighting for office workplaces. As pendant units they allow flexible arrangement and optimum suspension height. The elegant, flat housing and distinctive anti‑glare louvres differentiate Jilly from conventional office luminaires.
• The optical system combines a highly efficient lens arrangement with an anti‑dazzle louvre to maintain high luminous efficacy and visual comfort. Optionally available with integrated uplight; Tunable White versions support dynamic lighting concepts that bring daylight rhythm into the office.

Individualisation / Variants

• Anti‑glare louvre finishes: gold matt, silver matt, champagne matt, copper matt and other colours on request.
• Housing: standard RAL9002 white; many other colours available on request (up to thousands of options).
• Light distributions and configurations: Extra wide flood or Oval wide flood; direct or direct/indirect (with uplight) variants.

Characteristics / technical specifications

• ERCO lens system: optical polymer; light distributions: Extra wide flood or Oval wide flood.
• LED module: mid‑power LEDs. Colour temperatures: 2700K, 3000K (warm white); 3500K, 4000K (neutral white); Tunable White option 3000–6000K.
• Anti‑dazzle louvre (downlight): polymer (black lacquered) or aluminium vapourised finishes (silver, mirror‑finish).
• Diffuser (uplight): textured polymer (when present).
• Housing: aluminium profile / polymer, powder‑coated; standard white RAL9002; many special colours available.
• Control gear: switchable or DALI dimmable.
• Suspensions: wire suspension with 1‑point ceiling fixing and rapid wire connector for height compensation; ceiling canopy metal/polymer in white.
• Light output examples: pendant downlight configurations — light source approx. 11.2 W producing ~2,098–2,472 lm; direct/indirect variants from ~11.2 W to 40 W with fluxes approx. 2,098–4,150 lm depending on configuration.
