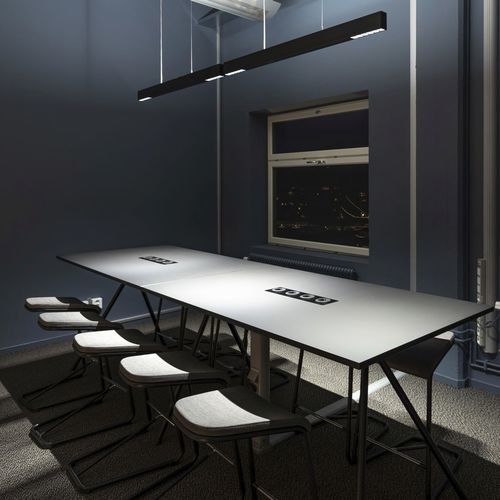

Hanging light fixture COMPAR LINEAR

LEDrectangularcommercial

COMPAR pendant luminaires from ERCO feature a slim linear suspended profile combining direct and indirect illumination, designed for architectural lighting and premium office environments. They provide glare-controlled, standard-compliant lighting with options for high output, Tunable White and multiple light distributions suitable for Human Centric Lighting concepts.

Special features

• High visual comfort: anti-dazzle louvre limits view into the luminaire and secures controlled emission behaviour for low glare.
• Suitable for office workstations: engineered for good glare control; UGR values can be referenced for normative lighting design while considering actual luminaire arrangement.
• Tunable White: indirect uplight can be adjusted in colour temperature to support dynamic, human-centric lighting strategies.

Product description

• Slender suspended profile (dimensions compatible with Hi-trac track) combining direct downlight and integrated diffuse uplight. Available in multiple wattages and light distributions with direct/indirect proportions configurable for workplace requirements.

Individualisation options

• Anti-dazzle louvre finishes: matt gold, matt silver or matt champagne.
• Housing colours: wide palette of powder-coated finishes and custom colours on request (ERCO individual options).

Product structure / components

• ERCO lens system: optical polymer lenses offering Wide flood, Extra wide flood and Oval wide flood distributions.
• ERCO LED-module: High-power LEDs in warm white (2700K / 3000K) or neutral white (3500K / 4000K); Mid-power LEDs for Tunable White (3000–6000K).
• Anti-dazzle louvre (downwards emission): polymer (black lacquered) or aluminium vapour-deposited finish (silver / mirror); designed for defined cut-off and glare control.
• Diffuser (upwards emission): textured polymer for diffuse uplight.
• Housing: aluminium profile, powder-coated.
• Control gear: switchable or DALI dimmable options.
• Suspensions: wire suspension with 1-point ceiling fixing and rapid wire connector for height compensation; ceiling canopy in metal/polymer (white) for canopy-mounted variants.

Characteristics / technical specifications

• Light distributions: Wide flood, Extra wide flood, Oval wide flood; direct and direct–indirect variants.
• Typical power / luminous flux examples: Pendant downlights — 12.1 W to 18.7 W (approx. 1,163 lm to 2,213 lm); Direct/indirect pendant variants — 12.1 W to 40 W (approx. 1,163 lm to 4,150 lm) depending on configuration.
• Colour temperatures: Warm white 2700K / 3000K; Neutral white 3500K / 4000K; Tunable White 3000K–6000K.
• Uplight: integrated diffuse uplight component for ceiling illumination to improve visual comfort and perceived room height.
• Glare control: anti-dazzle louvre with defined cut-off characteristics; materials and finishes available to match ceiling design.
• Housing: aluminium profile, powder-coated; multiple finish and colour options on request.
• Controls: switchable or DALI dimmable; further control options dependent on selected configuration.
• Mounting: wire suspension with rapid connector for height adjustment; 1-point ceiling fixing with canopy.
