LED floodlight KONA

for stationfor public buildingmuseum

Kona is an ERCO high‑lumen outdoor projector designed to illuminate large buildings and objects while providing outstanding visual comfort. The round, conically shaped luminaire housing offers good shielding, high luminous flux for long projection distances, maintenance‑free optoelectronics and a weather‑resistant housing with precise pan‑and‑tilt alignment.

Special features

• Improved visual comfort through targeted housing design and high‑quality optical components.
• Large lumen packages for very high illuminances suitable for accenting and focusing viewer attention.
• Oval flood (Spherolit lens) freely rotatable 360° for optimum matching to elongated objects.
• Various construction sizes covering a wide range of lumen categories for many lighting tasks.

Product description

• Suitable for focused lighting from long distances, floodlighting and uniform wallwashing.
• High luminous flux makes Kona ideal for large projection distances and installation in difficult‑to‑access locations.
• Maintenance‑free optoelectronics reduce operating costs and installation interventions.
• Extensive mounting accessories enable flexible installation and precise alignment via pan‑and‑tilt mounting plate.

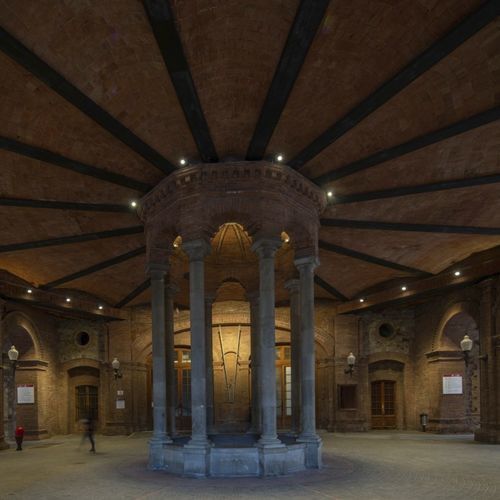

Applications / Example projects

• The Shed / Hudson Yards, New York
• Düsseldorfer Schauspielhaus, Düsseldorf
• Metro stations, Helsinki
• Pinacoteca Brera, Milan
• Domus Aurea, Rome
• Paranimf l'Escola Industrial, Barcelona
• Peking sailing ship, Hamburg

Individualisation options

• High‑power LEDs: options include 3000K CRI 97 or 2700K, 3500K, 4000K with CRI 92 (further variants on request).
• Housing: choice of standard Graphit m finish or up to 10,000 additional colours via ERCO individual service; series and special variants available on request.

Technical specifications

• Light source range (projector configurations): approx. 2 W – 97 W.
• Luminous flux range (product family): approx. 217 lm – 12,576 lm (projector configurations).
• Floodlight configurations: 6.1 W – 97 W; luminous flux 717 lm – 12,576 lm.
• Light distributions: Narrow spot, Spot, Flood, Wide flood, Extra wide flood, Oval flood, Wallwash; Narrow spot/Spot/Flood have cut‑off angle 30°.
• Optics: ERCO Spherolit lens; collimating lens made of optical polymer for LED modules.
• Oval flood: 360° rotation for alignment of asymmetrical distributions.
• LED colour temperatures / CRI options: warm white (3000K) and neutral white (4000K); extended options (2700K, 3500K, CRI 92 / CRI 97) available.
• Housing: corrosion‑resistant cast aluminium, No‑Rinse surface treatment, double powder‑coated; Graphit m finish option; optimised surface to reduce dirt accumulation.
• Anti‑glare cone: polymer, black lacquered; safety glass included.
• Control gear / dimming: switchable, phase dimmable + On‑board Dim (rotary control on luminaire), DALI dimmable, or Casambi Bluetooth.
• Mounting plate and hinge: corrosion‑resistant cast aluminium (No‑Rinse) or polymer; tilt/rotation options include 90° tilt with 300° rotation or 120° tilt with 360° rotation; internal wiring.
• Design benefits: weather‑resistant housing, maintenance‑free optoelectronics, suitable for long projection distances and installations requiring low maintenance.
