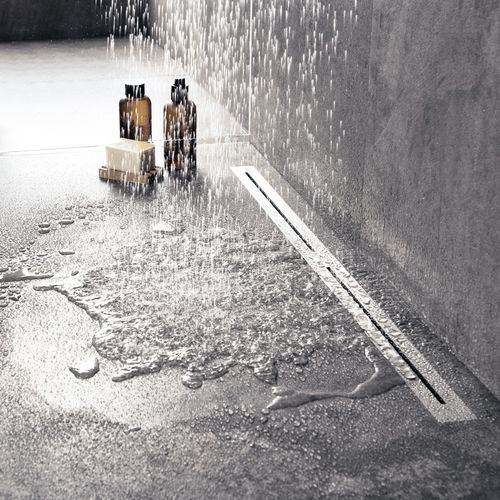

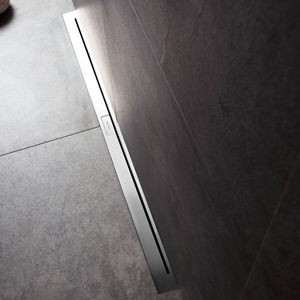

With the unique and stylish Easy Drain Nano you have chosen the thinnest shower drainage system available. Nano is equipped with the patented TAF-system and Water Protection System. This means 100% watertight and a perfect finish. The included water seal is easy to clean and offers a very high drainage capacity.
AVAILABLE LENGTHS
700 - 1200 mm
WATER PROTECTION SYSTEM
10-year warranty
TILE ADJUSTABLE FRAME
Height adjustable 5 - 18 mm
DRAINAGE CAPACITY
according to EN 1253
SIPHON
Removable and easy to clean
SUPPLIED AS
Complete set
SHOWER DRAIN MODEL
Rectangular shower drain
SERIE
Nano
APPLICATION
New construction, Renovation
CERTIFICATION
DIN 18534, ETAG-022
SUBSTRATE
Concrete / Sand Cement, Lewis sheets, Wooden floors
FLOOR FINISH
Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
INSTALLATION DEPTH (INCL. GRATE) (MM)
90
INSTALLATION DEPTH (MM)
90
CONNECTION (⌀)
50 (Global) / 56 (UK)
HEIGHT ADJUSTABLE FEET INCLUDED
Yes
INSTALLATION OPTION
Floor
DIMENSIONS (MM)
700 mm, 800 mm, 900 mm, 1000 mm, 1200 mm
OUTLET TYPE
Rotatable outlet
WATER SEAL (MM)
50
BUILT-IN SET
Nano | Rotatable outlet | Water seal 50 mm
OUTLET
Horizontal (Vertical outlet optional)
LOCATION IN SHOWER
Between two walls, Free in the floor
MAXDRAINAGECAPSHOWERDRAIN
33
PRE-ASSEMBLED SEALING MEMBRANE (WPS)
Yes
SIPHON CHARACTERISTICS
Cleanable, Height adjustable, Pivotable & adjustable
GRATE
Brushed stainless steel
GRATE PATTERN
Slot
ADJUSTABLE GRATE
No
TAF FRAME TYPE
TAF (Tile Adjustable Frame)
FRAME MATERIAL
Stainless steel (304)
FRAME FINISH
Brushed stainless steel
WHEELCHAIR ACCESSIBLE
Yes
EXTENSION SET AVAILABLE
No
