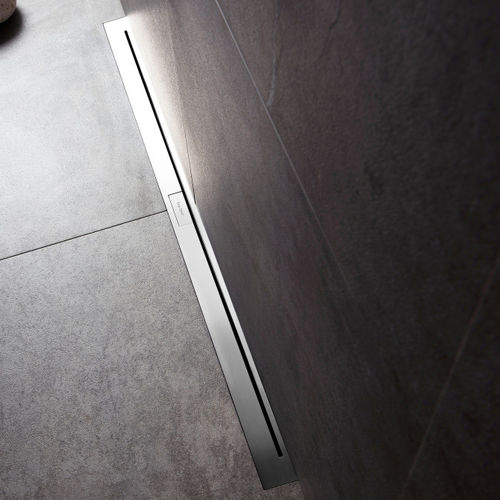

Brushed stainless steel linear shower drain NANO WALL

high-resistance

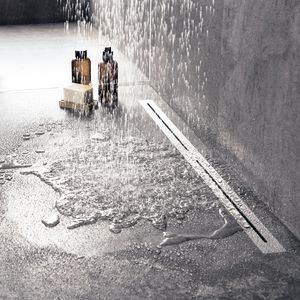

With the unique and stylish Easy Drain Xs Nano Wall you have chosen the thinnest linear shower drain available. Xs Nano Wall is equipped with the patented TAF-system and Water Protection System. This means 100% watertight and a perfect finish. The included water seal is easy to clean and offers a very high drainage capacity (33 l/min). AVAILABLE LENGTHS 700 - 1200 mm WATER PROTECTION SYSTEM 10-year warranty TILE ADJUSTABLE FRAME Height adjustable 5 - 18 mm DRAINAGE CAPACITY according to EN 1253 SIPHON Removable and easy to clean SUPPLIED AS Complete set SERIE Nano APPLICATION New construction, Renovation CERTIFICATION DIN 18534, ETAG-022 SUBSTRATE Concrete / Sand Cement, Lewis sheets, Wooden floors FLOOR FINISH Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic INSTALLATION DEPTH (INCL. GRATE) (MM) 90 INSTALLATION DEPTH (MM) 90 CONNECTION (⌀) 50 (Global) / 56 (UK) HEIGHT ADJUSTABLE FEET INCLUDED Yes INSTALLATION OPTION Floor DIMENSIONS (MM) 700 mm, 800 mm, 900 mm, 1000 mm, 1200 mm OUTLET TYPE Rotatable outlet WATER SEAL (MM) 50 BUILT-IN SET Nano | Rotatable outlet | Water seal 50 mm OUTLET Horizontal (Vertical outlet optional) LOCATION IN SHOWER Between two walls, Free in the floor MAXDRAINAGECAPSHOWERDRAIN 33 PRE-ASSEMBLED SEALING MEMBRANE (WPS) Yes SIPHON CHARACTERISTICS Cleanable, Height adjustable, Pivotable & adjustable GRATE Brushed stainless steel GRATE PATTERN Slot ADJUSTABLE GRATE No TAF FRAME TYPE TAF (Tile Adjustable Frame) FRAME MATERIAL Stainless steel (304) WHEELCHAIR ACCESSIBLE Yes EXTENSION SET AVAILABLE No
