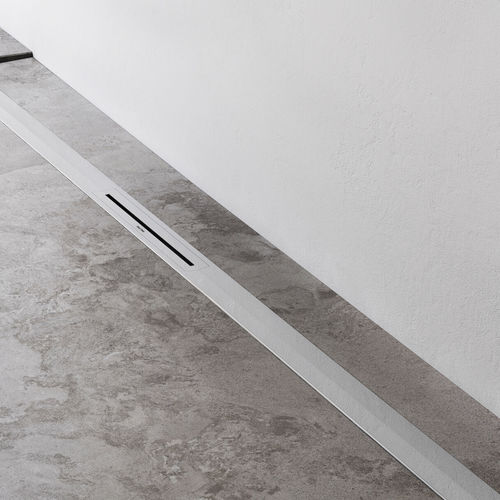

Easy Drain R-line Waterstop is not just functional but also beautifully designed. This shower drain with subtle slope has a model for wall and floor installation. The R-line Waterstop is available in various standard lengths that can be shortened on-site. With its large pre-assembled sealing membrane (130×200 cm) it’s easy to waterproof the complete shower floor while the Tile Adjustable Frame (TAF) system guarantees a 100% secure installation.
AVAILABLE LENGTHS
700 - 1200 mm
WATER PROTECTION SYSTEM
10-year warranty
TILE ADJUSTABLE FRAME
Height adjustable 7 - 18 mm
DRAINAGE CAPACITY
according to EN 1253
SUPPLIED AS
Complete set
CUSTOM LENGTH
Can be shortened on site
LARGE SEALING MEMBRANE (130X200 CM)
waterproofing the complete shower floor
Shower Drain model
Rectangular shower drain
Serie
R-line
Application
New construction, Renovation
Certification
DIN 18534, EN1253
Substrate
Concrete, Concrete / Sand Cement, Lewis sheets, Synthetic, Wooden floors
Floor finish
Cast / screed, Glass Mosaic, Thin tiles, Tiles / Mosaic
Max. drainage capacity entrance (l/min)
28
Installation depth (incl. grate) (mm)
69
Installation depth (mm)
76
Connection (⌀)
50 (Global) / 56 (UK)
Installation option
Floor
Dimensions (mm)
700 mm, 800 mm, 900 mm, 1000 mm, 1200 mm
Outlet type
Rotatable outlet
Water seal (mm)
28 / 50
