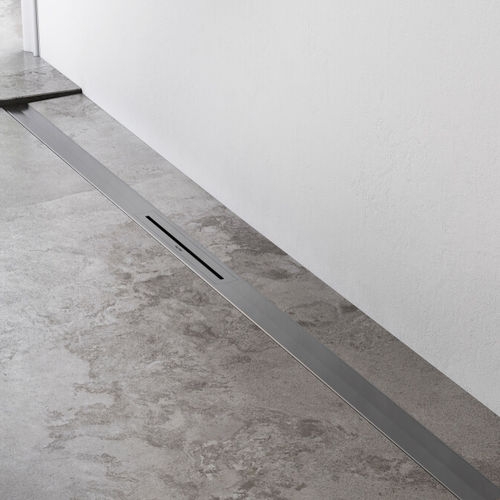

Brushed stainless steel linear shower drain R-LINE-800

high-resistance

Easy Drain R-line Waterstop is not just functional but also beautifully designed. This shower drain with subtle slope has a model for wall and floor installation. The R-line Waterstop is available in various standard lengths that can be shortened on-site. With its large pre-assembled sealing membrane (130×200 cm) it’s easy to waterproof the complete shower floor while the Tile Adjustable Frame (TAF) system guarantees a 100% secure installation. AVAILABLE LENGTHS 700 - 1200 mm WATER PROTECTION SYSTEM 10-year warranty TILE ADJUSTABLE FRAME Height adjustable 7 - 18 mm DRAINAGE CAPACITY according to EN 1253 SUPPLIED AS Complete set CUSTOM LENGTH Can be shortened on site LARGE SEALING MEMBRANE (130X200 CM) waterproofing the complete shower floor SHOWER DRAIN MODEL Rectangular shower drain SERIE R-line APPLICATION New construction, Renovation CERTIFICATION DIN 18534 SUBSTRATE Concrete, Concrete / Sand Cement, Lewis sheets, Synthetic, Wooden floors FLOOR FINISH Cast / screed, Glass Mosaic, Thin tiles, Tiles / Mosaic MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN) 28 INSTALLATION DEPTH (INCL. GRATE) (MM) 69 INSTALLATION DEPTH (MM) 76 CONNECTION (⌀) 50 (Global) / 56 (UK) INSTALLATION OPTION Floor DIMENSIONS (MM) 800 mm OUTLET TYPE Rotatable outlet WATER SEAL (MM) 28 / 50 BUILT-IN SET | Rotatable outlet | Water seal 28 / 50 mm OUTLET Horizontal (Vertical outlet optional) LOCATION IN SHOWER Between two walls, Free in the floor MAXDRAINAGECAPSHOWERDRAIN 28 PRE-ASSEMBLED SEALING MEMBRANE (WPS) Yes SIPHON CHARACTERISTICS Cleanable, Height adjustable, Pivotable & adjustable GRATE PATTERN Slot ADJUSTABLE GRATE No
