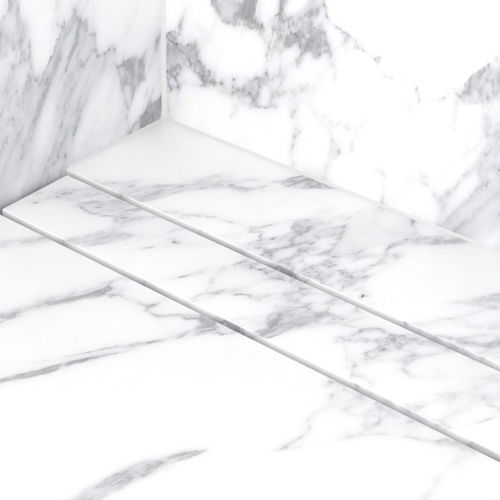

Natural stone linear shower drain FLEX

high-resistance

Easy Drain Modulo Stone Flex is a unique custom length shower drain that is developed for natural stone flooring of any thickness. This linear shower drain is installed from wall-to-wall and has an invisible appearance thanks to its frameless design. AVAILABLE LENGTHS 500 - 2000 mm WATER PROTECTION SYSTEM 10-year warranty DRAINAGE CAPACITY according to EN 1253 GRATE Height adjustable grate SIPHON Easy to clean SUPPLIED AS Complete set CUSTOM LENGTH Can be shortened on site SERIE Modulo Stone APPLICATION New construction, Renovation CERTIFICATION DIN 18534, EN1253, ETAG-022 SUBSTRATE Concrete / Sand Cement, Lewis sheets, Wooden floors MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN) 28, 33 INSTALLATION DEPTH (INCL. GRATE) (MM) 70, 98 INSTALLATION DEPTH (MM) 70, 87 CONNECTION (⌀) 40, 50 (Global) / 56 (UK) HEIGHT ADJUSTABLE FEET INCLUDED Yes DIMENSIONS (MM) 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm OUTLET TYPE Rotatable outlet WATER SEAL (MM) 28, 50 BUILT-IN SETM 2-35 | Rotatable outlet | Water seal 28 mm, M2-50 | Rotatable outlet | Water seal 50 mm INSTALLATION OPTION Floor, Wall OUTLET Horizontal (Vertical outlet optional) LOCATION IN SHOWER Between two walls, Free in the floor, One-sided, Three-fold MAX. DRAINAGE CAPACITY WALL (L/MIN) 33, 41 MAXDRAINAGECAPSHOWERDRAIN 33, 41 PRE-ASSEMBLED SEALING MEMBRANE (WPS) Yes SIPHON CHARACTERISTICS Cleanable, Height adjustable, Pivotable & adjustable GRATE Tile ADJUSTABLE GRATE Yes WHEELCHAIR ACCESSIBLE Yes EXTENSION SET AVAILABLE No
