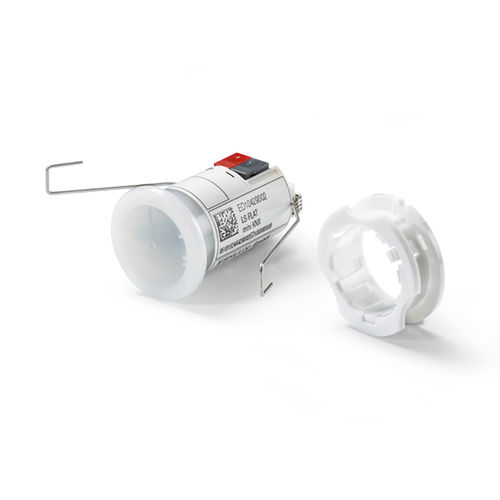

The LS FLAT mini KNX dimmer switch ensures that a better level of individuality, flexibility and energy efficiency can be achieved for any KNX lighting control system. Hidden in a tiny housing, its light measurement can be used to switch, regulate or control two separate light channels. It can align two external light values with its own value, thereby providing almost unlimited possibilities for multi-point measurements and cascading.
SHORTFACTS
Installation typeRecessed mounting
Installation positionCeiling
Protection typeIP55
DimensionsHeight/Depth 48 mm, Ø 33 mm
Power consumption0.3 W
Light measurementmixed light
Level of brightness5 - 10000 lx
Warranty5 years
TECHNICAL DATA
GENERAL
ConformityCE , RoHS , WEEE
MOUNTING
Installation typeRecessed mounting
Installation positionCeiling
Installation dimensionInstallation depth: 45 mm, Ø 25 mm
ConnectionWAGO
HOUSING
DimensionsHeight/Depth 48 mm, Ø 33 mm
Weight56 g
MaterialUV-stabilised PE
Protection typeIP55
Permissible ambient temperature0 °C...+35 °C
Relative humidity5 - 93 %, non-condensing
ColourOpal matt
ELECTRICAL VERSION
Protection classIII
Nominal voltage29 - 31 V
Power consumption0.3 W
Power consumption10 mA
SENSORS
Recommended installation height3 m
Max. mounting height5 m
Level of brightness5 - 10000 lx
constant lighting control1
