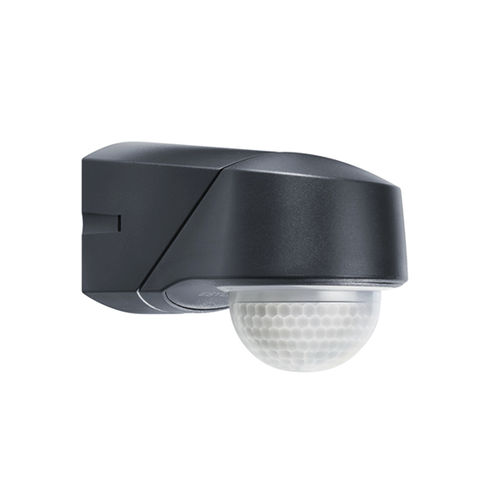

The RC outdoor motion detectors are suitable for all common applications on building façades and projections due to the wide range of setting and installation options. A special bracket also enables trouble-free wall or ceiling mounting on inner and outer corners. 360° creep protection ensures unbroken coverage — and therefore maximum safety.
SHORTFACTS
Installation typeSurface mounting
Installation positionCeiling / Wall
Protection typeIP54
Dimensionslength 135 mm x width 78 mm x Height/Depth 105 mm
Power consumption0.3 W
Detection angle280° (3 x 95° separately adjustable) and 360° anti-creep protection
Detection range diagonallyØ 40 m
field of detectionup to 979 m²
Light measurementmixed light
Level of brightness2 - 2500 lx
Warranty5 years
TECHNICAL DATA
GENERAL
Special product featuresSimple programming using remote control with "blue mode" technology
Special product featuresOne-hand plug-in base , Anti-creep protection
ConformityCE , RoHS , WEEE
MOUNTING
Installation typeSurface mounting
Installation positionCeiling / Wall
Connection2,5 mm² / 1,5 mm²
HOUSING
Dimensionslength 135 mm x width 78 mm x Height/Depth 105 mm
Weight350 g
MaterialUV-stabilised polycarbonate
Protection typeIP54
Permissible ambient temperature-25 °C...+55 °C
Relative humidity5 - 95 %, non-condensing
ColourBlack, similar to RAL 9005
ELECTRICAL VERSION
Protection classII
Nominal voltage230 V / 50 Hz
Power consumption0.3 W
In-rush current100 A / 200 µs
