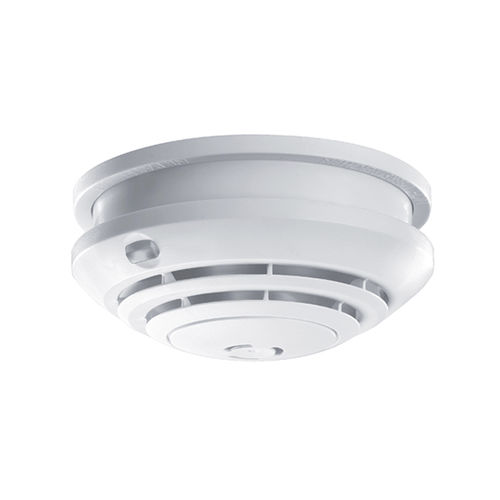

The Protector series provides comprehensive protection against typical hazards in buildings. Different detector variants allow monitoring of individual rooms.
SHORTFACTS
Installation typeSurface mounting
Installation positionCeiling
Protection typeIP20
DimensionsHeight/Depth 48 mm, Ø 106 mm
Power consumption0.45 W
Warranty3-year
TECHNICAL DATA
GENERAL
ConformityCE , RoHS , WEEE
Automatic testingapprox. every 45 seconds with fault display
Electronic smoke chamber testat the push of a button
Networkabilityup to 30 detectors by wire
Power consumption0.45 W
Signal volumeapprox. 85 dB/3 m
Suitable for radio transmissionNo
MOUNTING
Installation typeSurface mounting
Installation positionCeiling
Installation dimensionInstallation depth: 18 mm, Ø 20 mm
HOUSING
DimensionsHeight/Depth 48 mm, Ø 106 mm
Weight173 g
MaterialABS, halogen-free
Protection typeIP20
Permissible ambient temperature0 °C...+55 °C
Relative humidity5 - 93 %, non-condensing
Colourwhite, similar to RAL 9010
ELECTRICAL VERSION
Protection classII
Nominal voltage230 V / 50 Hz
Power consumption0.45 W
