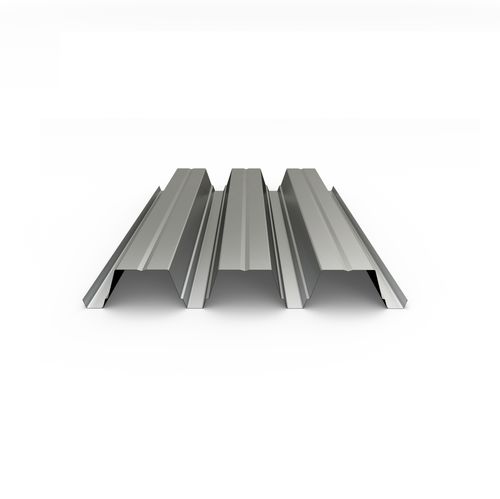

Ribbed sheet metal EUROBASE 106

galvanized steelself-supportingroof

Europerfil EUROBASE 106 ribbed metal profile (3.250.106). Self-supporting profile with large spans between supports (between 4.5 and 7.5 metres*). Nerve height 106 mm, useful width 750 mm, and thickness from 0.6 mm to 1.20 mm. Galvanised and pre-lacquered steel (EN 10169) in standard Europerfil colours and coatings. CE marking (EN 14782). Auxiliary complements: Polyethylene seal depending on profile section translucent depending on profile section, possibility of perforation for acoustic systems, plain mechanical curving** (minimum radius: 40 m for a 1mm thickness profile. Consult us for other thicknesses.) * Depending on the width of the supports. Technical sheet corresponding to a support width of 60mm. Consult our technical department for widths of 120 and 160 mm. ** Beware: the curving process shortens the useful width of the profile. Consult our technical department for longitudinal overlapping. This product is manufactured in: Steel
