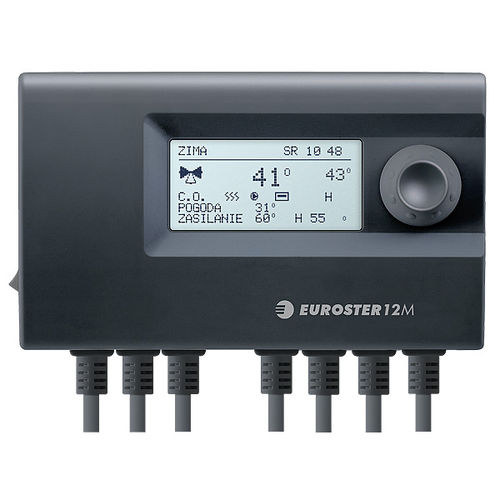

Wall-mounted heating controller 12M

wall-mounted heating controller
wall-mounted heating controller
Add to favorites
Compare this product
indicative price

Characteristics

Installation
wall-mounted

Description

Designed for control of heating zone with a 3 or 4-way valve. control of 3-point actuator of a mixing valve control of CH zone pump weather-based setting of heating zone preset temperature hourly schedule of heating zone operation cooperation with room thermostat automatic switching on and off of the heating according to the outdoor temperature function of temporary switching on of zone with a preset temperature (floor preheating, fast heating up of rooms) zone overheating protection frost protection alarm indication option of manual switching on of the outputs Anti-Stop function – protection of pumps against seizure legible, graphical, backlit LCD set of temperature sensors included Controlled device 3-point actuator of mixing valve, CH pump Supply voltage 230 V 50 Hz Maximum load of the outputs 1 A 230 V 50 Hz Maximum power consumption of the receiver 3 W Temperature measurement range 0 °C...+100 °C Temperature control range +10 °C...+90 °C Temperature control accuracy 1 °C Temperature reading accuracy 1 °C Hysteresis range 2 °C - 10 °C Visual signalization backlit LCD Operating temperature range +5 °C...+45 °C Storage temperature range 0 °C...+45 °C Ingress protection rating IP 40 Color black Installation method wall-mounted Controller weight (without packaging) 920 g Standards, approvals, certificates conformity with LVD, EMC, and RoHS Warranty period 2 years Dimensions (W/HxD) mm 150/90/52 Packing list Euroster 12M controller with temperature sensors, screw anchorsUser Manual with Warranty Certificate, mounting template, sensor hose clips
