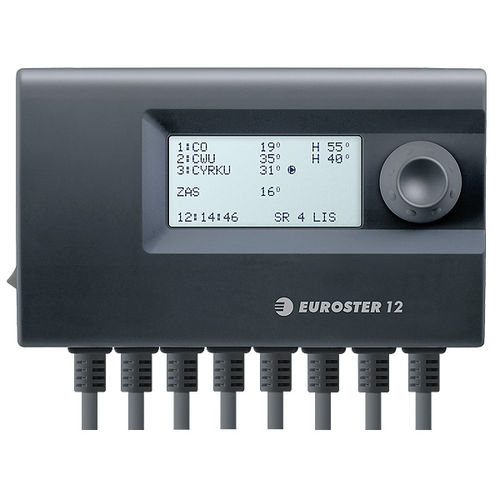

Wall-mounted heating controller 12

for boiler

Programmable weekly controller to control the operation of 3 heating devices distinguished by a free configuration that allows adaptation to the needs of most installations. Equipped with anti stop pump protection system. Euroster 12 is an electronic, programmable weekly controller designed to control the operation of 3 devices in the heating system. Free configuration allows the driver to be adapted to the needs of most installations. The controller is equipped with Anti Stop pump protection system, which prevents the seizing process of the unused pump impeller. After the end of the heating season, the system automatically starts the pump every two weeks for 30 seconds (for the system to work after the season, the controller should be left turned on). Euroster 12 has 3 independent relay outputs with the possibility of setting each output in the mode: central heating pump, domestic hot water pump, thermostat, floor pump, time operation and blower. Configurable, independent 3 control (relay) outputs Possibility to set each output to work with: central heating circulation pump the pump loading the domestic hot water tank circulation pump for hot water circulation floor pump blower (no speed control) any device (thermostat mode, time mode) Free configuration allows the driver to be adapted to the needs of most installations Configurable DHW priority Weekly work schedules independent for each output Protection against overheating of circuits SUMMER / WINTER operation mode The Anti Stop System, which prevents the seizing process of the unused pump impeller, which starts the circulation pump (also outside the heating season) for approx. 30 seconds every 14 days
