Everdigm Boom pumps are based on FFH oil pressure system, and its superior performance is approved in international market. Everdigm offers new paradigm in Boom pumps industry with highly engineered products, where durability and productivity is guaranteed. Everdigm concrete boom pumps are great business partner for success.
■ Maximize working efficiency with FFH System application.
■ Easy to control the boom speed by proportional system.
■ Manganic chrome of reducing pipe, Wear-resistant material of delivery pipe.
■ Auto-lubricating device minimizing parts abrasion of repetitive working part.
■ Stable and safe working by monitoring the boom movement.
■ Adjusting concrete pressure and delivery volume by each different pump cell option.

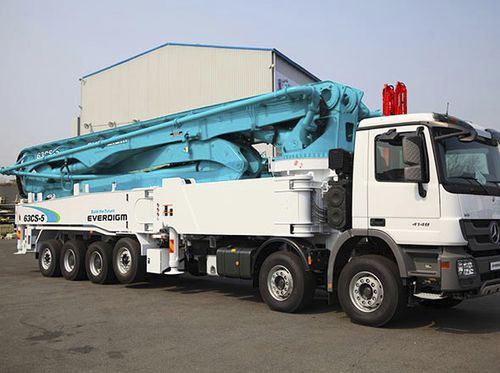

5-section RZ-folding / Max.Vertical Reach 63m
Concrete Cylinder Dia.230 (mm) // Drive Cylinder Dia.140 (mm) // Stroke 2,500
Theoretical Concrete _Output 160 (m³/h) // _Pressure 85 (bar)
Front Outrigger Type_Two Stage Swing-out
Rear Outrigger Type_One Stage Swing-out
Folding type5-section RZ-folding Pump cell2116
Max. vertical reach62.1m Control systemClosed Free Flow Hydraulic
Max. horizontal reach58.3m Main pumpA4VG125x2
Max. depth reach45.6m Concrete cylinder (mm)230x2,100
Unfolding height13m Strokes No.(per min.)*30
Slewing angle360deg. Concrete output(m3/h)*160
End hose length3m Concrete pressure(bar)*85
Delivery pipe dia.125mm Transfer tube typeS-Tube, S2018 (Dia. 200-180mm)
Gross Vehicle Weight56.6ton Volume of hopper (liter)600
