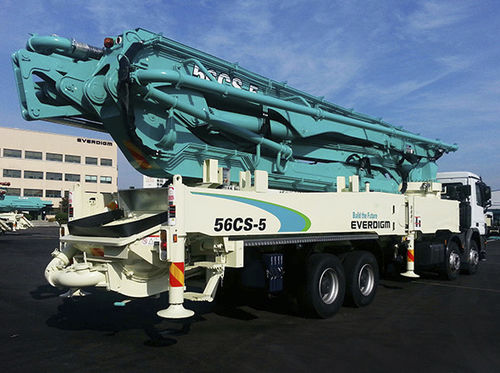

Mobile concrete pump ECP56CS-5

truck-mounted

Everdigm Boom pumps are based on FFH oil pressure system, and its superior performance is approved in international market. Everdigm offers new paradigm in Boom pumps industry with highly engineered products, where durability and productivity is guaranteed. Everdigm concrete boom pumps are great business partner for success. ■ Maximize working efficiency with FFH System application. ■ Easy to control the boom speed by proportional system. ■ Manganic chrome of reducing pipe, Wear-resistant material of delivery pipe. ■ Auto-lubricating device minimizing parts abrasion of repetitive working part. ■ Stable and safe working by monitoring the boom movement. ■ Adjusting concrete pressure and delivery volume by each different pump cell option. 5-section RZ-folding / Max.Vertical Reach 56m Concrete Cylinder Dia.230 (mm) // Drive Cylinder Dia.140 (mm) Pressure 85 (bar) Folding Type 5 Stage RZ-folding // Slewing Angle 360deg. Max.Vertical Reach 56m // Max.Horizontal Reach 56m Front Outrigger Type_Two Stage Swing-out // Rear Outrigger Type_One Stage Swing-out BOOM　PUMP 　Folding type5-section RZ-folding Pump cell2116 　Max. vertical reach55.5m　Control systemClosed Free Flow Hydraulic 　Max. horizontal reach51.2m　Main pumpA4VG125x2 　Max. depth reach40.1m　Concrete cylinder (mm)230x2,100 　Unfolding height12.2m　 Concrete output(m3/h)*160 　Slewing angle360deg.　 Concrete pressure(bar)*85 　End hose length3(4)m　 Strokes No.(per min.)30 　Delivery pipe dia.125mm　Transfer tube typeS-Tube, S2018(S2318) 　　　 Volume of hopper (liter)600L
