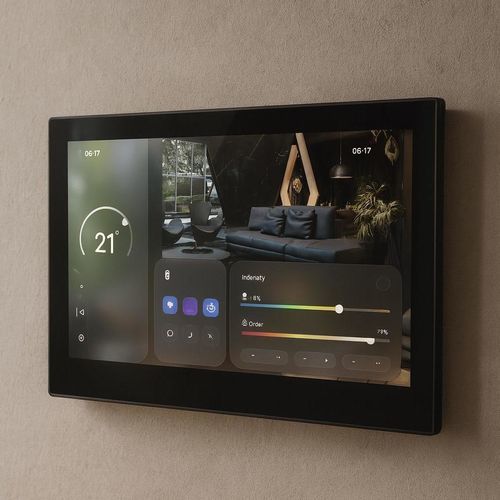

Home automation system touch screen EVI-YZ10P

for building automation systemsfor securityfor access control

The YziPanel EVI-YZ10P Panel PC is a compact touchscreen platform for building management systems, supervision, and access control. Available in 10", it combines a multitouch IPS screen and a low-power Rockchip SoC, ideal for 24/7 operation.

Main applications:
– Meeting room display and control
– GTB/smart building supervision
– Reception and check-in kiosks
– Lightweight medical terminals or wall-mounted points of sale

Key features:
– Rockchip RK3566 or RK3576 processor, 2 to 4 GB RAM
– Android 13/14 or Linux depending on configuration
– eMMC or SSD storage up to 512 GB
– VESA or wall mounting, robust chassis
– WiFi, Bluetooth, LAN, RS-485, USB Type-C
– Options: NFC reader, smart card reader, proximity or light sensors, OEM configuration on request.

Mounting Flush-mount enclosure
Audio Built-in microphone with ambient noise cancellation, 2 x 2W 8Ω speakers
Webcams None (option available on request, subject to minimum quantity)
Accelerometer Yes, 4 directions, 360°
Battery capacity No built-in battery
Software
Remote shutdown/power off via POE, rooted Android, APK launch at boot, ADB
via TCP/IP for middleware,
Chassis Metal
Power supply POE power supply
Size 240.4*173*11mm per tablet
Weight 880g per tablet
Warranty 2 years parts and labor.
Certification CE, RoHSThe YziPanel EVI-YZ10P Panel PC is a compact touchscreen platform for building management systems, supervision, and access control. Available in 10", it combines a multitouch IPS screen and a low-power Rockchip RK3568 SoC, ideal for 24/7 operation.

Main applications:
– Meeting room display and control
– GTB/smart building supervision
– Reception and check-in kiosks
– Lightweight medical terminals or wall-mounted points of sale

Key features:
– Rockchip RK3568 processor, 2 to 4 GB RAM
– Android 11/13 or Linux depending on configuration
– eMMC or SSD storage up to 512 GB
– VESA or wall mounting, robust chassis
– WiFi, Bluetooth, LAN, RS-485, USB Type-C
– Options: NFC reader, smart card reader, proximity or light sensors, OEM configuration on request.

Mounting Flush-mount enclosure
Audio Built-in microphone with ambient noise cancellation, 2 x 2W 8Ω speakers
Webcams None (option available on request, subject to minimum quantity)
Accelerometer Yes, 4 directions, 360°
Battery capacity No built-in battery
Software
Remote shutdown/power off via POE, rooted Android, APK launch at boot, ADB
via TCP/IP for middleware,
Chassis Metal
Power supply POE power supply
Size 240.4*173*11mm per tablet
Weight 880g per tablet
Warranty 2 years parts and labor.
Certification CE, RoHSThe YziPanel EVI-YZ10P Panel PC is a compact touchscreen platform for building management systems, supervision, and access control. Available in 10", it combines a multitouch IPS screen and a low-power Rockchip RK3568 SoC, ideal for 24/7 operation.

Main applications:
– Meeting room display and control
– GTB/smart building supervision
– Reception and check-in kiosks
– Lightweight medical terminals or wall-mounted points of sale

Key features:
– Rockchip RK3568 processor, 2 to 4 GB RAM
– Android 11/13 or Linux depending on configuration
– eMMC or SSD storage up to 512 GB
– VESA or wall mounting, robust chassis
– WiFi, Bluetooth, LAN, RS-485, USB Type-C
– Options: NFC reader, smart card reader, proximity or light sensors, OEM configuration on request.

Mounting Flush-mount enclosure
Audio Built-in microphone with ambient noise cancellation, 2 x 2W 8Ω speakers
Webcams None (option available on request, subject to minimum quantity)
Accelerometer Yes, 4 directions, 360°
Battery capacity No built-in battery
Software
Remote shutdown/power off via POE, rooted Android, APK launch at boot, ADB
via TCP/IP for middleware,
Chassis Metal
Power supply POE power supply
Size 240.4*173*11mm per tablet
Weight 880g per tablet
Warranty 2 years parts and labor.
Certification CE, RoHS
