Home automation system touch screen EVI-R5for building automation systemsfor securityfor access control
Add to favorites
Compare this product
Characteristics
- Applications
- for home automation system, for access control, for security, monitoring, for building automation systems, for home multimedia systems, for ventilation system, for energy management
- Pose
- wall-mounted, recessed, fixed
- Specifications
- Bluetooth, digital display, with touchscreen, multimedia, customizable, wireless, WiFi, indoor, Android, smart, Ethernet, information, Linux, white labelling, interactive
- Applications
- indoor, for industrial applications
- Display size
- 5"
Description

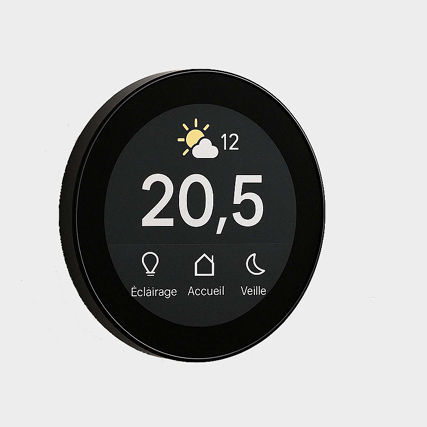

YziPanel R5 – 5-inch Round Wall Tablet | Smart Building & Building Automation
Elegance takes shape.
The YziPanel R5 redefines the connected wall interface. With its 5-inch circular display perfectly flush-mounted into the wall, it blends seamlessly and elegantly into any architectural environment — offices, hotels, high-end residential, or commercial buildings.
A design built for architecture
Its circular form factor — 153.5 mm in diameter and just 11 mm thick — delivers a clean, contemporary presence. The metal finish ensures premium durability and aesthetics, suited to the most demanding interior design projects.
Performance that serves the user
Powered by a RockChip RK3566 Quad-Core Cortex A55 processor (1.8 GHz), the YziPanel R5 delivers a smooth, responsive experience. Its 1080×1080 px IPS capacitive touchscreen at 300 nits ensures optimal readability in all lighting conditions. Available under Android 13, Android 11, or Debian 11 to fit any software architecture.
Full connectivity
Network: RJ45 PoE 10/100M, WiFi 802.11b/g/n, Bluetooth 5.2, 5G optional
Field bus: RS485 A.B for integration with building automation and BMS systems
Audio: 2 built-in microphones + 1W speaker
Power: PoE or DC 12V — no visible mains cable required
Ideal for:
Lighting control, access management, information display, HVAC control, building automation interfaces (KNX, Modbus, BACnet over RS485), dynamic signage.
Warranty & After-Sales
3-year warranty — full unit replacement in case of failure.
The YziPanel R5 is distributed by EVI, specialist in industrial computing and smart building solutions.
Elegance takes shape.
The YziPanel R5 redefines the connected wall interface. With its 5-inch circular display perfectly flush-mounted into the wall, it blends seamlessly and elegantly into any architectural environment — offices, hotels, high-end residential, or commercial buildings.
A design built for architecture
Its circular form factor — 153.5 mm in diameter and just 11 mm thick — delivers a clean, contemporary presence. The metal finish ensures premium durability and aesthetics, suited to the most demanding interior design projects.
Performance that serves the user
Powered by a RockChip RK3566 Quad-Core Cortex A55 processor (1.8 GHz), the YziPanel R5 delivers a smooth, responsive experience. Its 1080×1080 px IPS capacitive touchscreen at 300 nits ensures optimal readability in all lighting conditions. Available under Android 13, Android 11, or Debian 11 to fit any software architecture.
Full connectivity
Network: RJ45 PoE 10/100M, WiFi 802.11b/g/n, Bluetooth 5.2, 5G optional
Field bus: RS485 A.B for integration with building automation and BMS systems
Audio: 2 built-in microphones + 1W speaker
Power: PoE or DC 12V — no visible mains cable required
Ideal for:
Lighting control, access management, information display, HVAC control, building automation interfaces (KNX, Modbus, BACnet over RS485), dynamic signage.
Warranty & After-Sales
3-year warranty — full unit replacement in case of failure.
The YziPanel R5 is distributed by EVI, specialist in industrial computing and smart building solutions.
