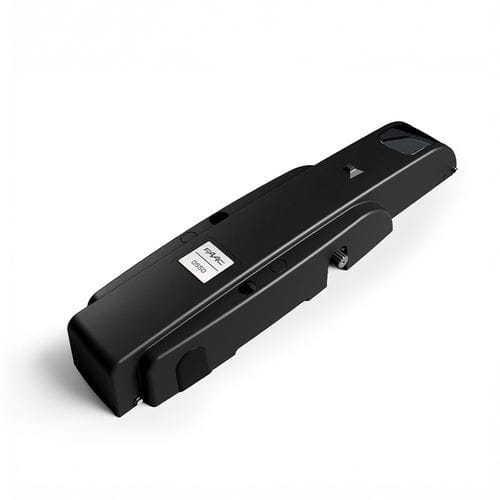

Up-and-over garage door automation D550 series
Add to favorites
Compare this product
Characteristics
- Applications
- for up-and-over garage doors
Description
Product overview
Key features
Performance
Technical data
- 230 V electromechanical operator for overhead/garage doors, model D550. Intended for residential use. Built-in LED lighting and multiple safety and unlocking options.
Key features
- Integrated LC function: low standby consumption <0.5 W, compliant with Ecodesign Directive 2009/125/EC and EU Regulation 2023/826.
- Anti-crushing safety: electronic torque control with absolute encoder (SAFEcoder) and independent force and speed regulation for opening and closing.
- Internal and external unlocking: internal release mechanism with option for external key-operated unlocking.
- Standard LED lighting: built-in LED lighting included as standard.
Performance
- Max leaf weight: 10 kg/m²
- Use frequency: up to 35 cycles/hour (standard variant)
Technical data
- Models: D550 / D550 S / D550 L / D550 S L
- Power supply: 220–240 V~ @50/60 Hz
- Max power: 680 W (D550) - 380 W (D550 S) | 740 W (D550 L) - 410 W (D550 S L)
- Max torque: up to 400 Nm
- Max door weight: 10 kg/m²
- Max leaf speed: up to 12 °/s (standard)
- Max leaf width (with 2 units): 3 m (4 m)
- Max leaf height (with 2 units): 2.7 m (3 m)
- Motor speed: 1400 rpm (standard variant)
- Type of use: Residential
- Use frequency: 35 cycles/h (standard) / 20 cycles/h (L variants)
- Protection rating: IP31 (IP44 achievable with kit)
- Operating temperature: -20 °C to +55 °C
- Electric motor: 230 V
- Thrust capacitor: 10 µF
- Insulation class: Class I (EN 60335-2-95)
- Acoustic pressure level: ≤ 70 dB(A)
- Gearmotor weight: 9.5 kg
- Item codes: 110123 (D550) - 110124 (D550 S) - 110127 (D550 L) - 110125 (D550 S L)
