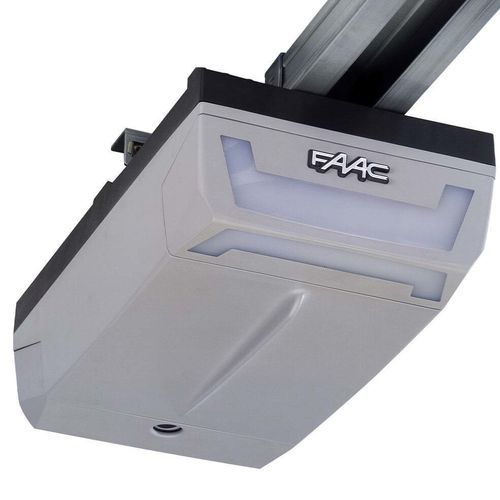

Garage door automation D600 - D700 HS - D1000

for sliding gates

Overview

• 24V electromechanical belt- or chain-drive operators for sliding gates, available in D600, D700 HS and D1000 variants.
• Fast installation with pre-assembled rail and FAAC snap-in rotation coupling for simplified mechanical connection.
• Adjustable limit switches, electronic deceleration and automatic reverse on obstacle detection; D700 HS offers speeds up to 12 m/min.

Performance

• Max traction / thrust force: 600 N (D600) - 700 N (D700 HS) - 1,000 N (D1000).
• Max power: 220 W (D600) - 440 W (D700 HS) - 350 W (D1000).
• Max carriage speed: 6.6 m/min (D600, D1000) - 12 m/min (D700 HS).
• Carriage speed at slow-down: 1.3 m/min (D600, D1000) - 2.5 m/min (D700 HS).

Mounting and electronics

• FAAC snap-in and rotation mounting system (patented) for simplified mechanical coupling and rapid installation.
• Final position and slowdown points stored through a simple initialization routine.
• Electronic board features: quick connector for receiver boards; operating modes: automatic / semi-automatic; terminal block connections for Open / Stop / Safety / Safety self-test / 24V flashing light.

Models and item codes
D600 Dolphin Kit K868 | 10566515
D600 Dolphin Kit K433 | 10566516
D700 HS | 110602
D1000 Dolphin kit K868 | 10566615
D1000 Dolphin kit K433 | 10566616

Compatible accessories and control boards

• Electronic control units: E600, E700 HS, E1000.
• Transmitters and radio systems: FDS System (433 / 868 MHz), omniDEC / XTO transmitters (433.92 - 868.35 MHz).
• Photocells and safety detectors: XP 20 D (adjustable wall photocells), XP 30 (wall-mounted photocells).
• Flashing light: XLED.
• Readers and keypads: XTR B (TAG reader), XKP control keypads.
• Safety Edge Radio System: XT S 868 transmitter and XR S 868 receiver.

Technical specifications

• Power supply voltage: 220-240V~ 50/60 Hz.
• Electric motor: brushed 24V DC.
• Max power: 220 W (D600) - 440 W (D700 HS) - 350 W (D1000).
• Max traction / thrust force: 600 N (D600) - 700 N (D700 HS) - 1,000 N (D1000).
• Max carriage speed: 6.6 m/min (D600, D1000) - 12 m/min (D700 HS).
• Carriage speed at slow-down: 1.3 m/min (D600, D1000) - 2.5 m/min (D700 HS).
• Safety functions: electronic deceleration, obstacle detection with reverse, safety self-test terminal.
