Cable-and-membrane tensile structure POINT-SUPPORTED TENSILE STRUCTURES
sailfor entrance canopiesfor facade

cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
cable-and-membrane tensile structure
Add to favorites
Compare this product


Characteristics

Type
cable-and-membrane, sail
Applications
for entrance canopies, for facade, for carports
Membrane material
with PVC membrane
Market
for public spaces, for athletic fields, for stadiums, for school, for restaurants, for parking lots, for bar, for airports, for hospitals, for special events
Other characteristics
translucent

Description

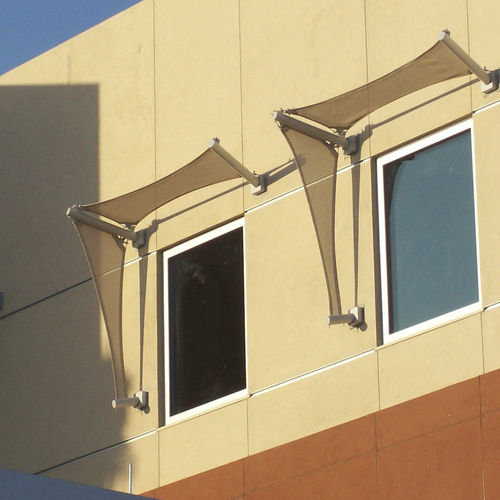

Point-supported structures are tensile structures with at least four points of attachment with either straight or curved edges that produce a clear span avoiding a center mast. An exterior frame, adjacent building, or perimeter masts support the fabric. The classic point-supported structure is the saddle shape or hypar. Shapes vary depending on the number of anchor points and the position of the supporting elements, however, double curvature is essential. Several point-supported structures can share a common mast.
