Installation

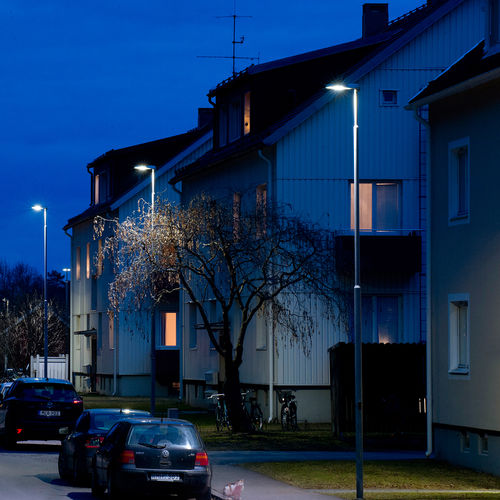

Post top luminaire which in its standard design can be mounted on a Ø 48-60 mm post top or post arm bracket. Accessories for other mounting options are ordered separately, see Accessories. Tilting function ± 15º. Post height 3–8 m.
Connection
Connection cable 3x1.5 mm² type H07RN-F. 4- and 6-LED version is delivered with 6 m cable. 8-LED version is delivered with 8 m cable. 10- and 12-LED versions are delivered with 10 m cable. DALI version available on request, delivered with a 5-pin cable. Other cable versions on request.
Design
Body and post bracket in cast aluminium. Aluminium-zinc coated screws. Ballast is built into the luminaire. Flanges for optimum cooling. Screen printed saftey glass.
Light distribution
Asymmetrical. Choose between the different lens options via the drop-down menu below. The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority.
Optics
AGC-lenses (Advanced Glare Control) for both illuminance and luminance classifications.
Dimming
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its service life. For more information, see Light control. DALI version is available on request.
Accessories
See Accessories.
Spigot for post arm, post-top bracket, single or double.
Standard Colour
Alu-grey (RAL 9006, semi-gloss).
LED-information
LED-module: 730 (3000 K, Ra 70)
MacAdam 5 SDCM.
Driver life-time: up to 100.000 h/10 % (max failure).
DALI version is equipped with NTC, over-heat protection.
Driver with integrated surge protection (DM: 6 kV. CM: 8 kV).
Extra surge protection (DM and CM: 10 kV) available on request.
