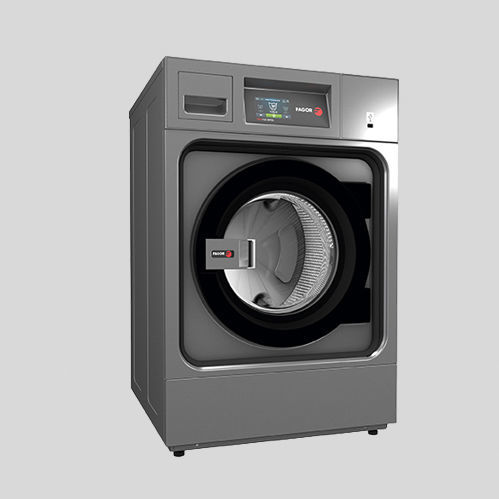

Front-loading washer-extractor COMPACT RANGE

floor-standingwith legsstackable

Overview
The Compact range of washer extractors delivers industrial-level washing and extraction performance in a compact footprint. Designed for small businesses and installations requiring powerful extraction, flexible installation and programmable control.

Key features

• High-spin floating washer extractors that do not require floor anchoring.
• Levelling feet for straightforward installation; optional plinths available.
• Two water inlets supplied as standard.
• Load capacity: compact dimensions with 8–10 kg load; stackable with dryers and suitable for column mounting.
• Semi-industrial design combining industrial components in a reduced footprint for small facilities.

Control and programmability
Equipped with the Touch Plus Control microprocessor: fully programmable, with multiple preset programs modifiable during operation. Functions include creating, exporting and importing programs via USB, an intuitive 4.3-inch touchscreen and support for 37 languages. USB port provided for program exchange and software updates.

Water, dosing and efficiency
An intelligent manual weighing system automatically adjusts water and chemical dosing based on load weight. Automatic dosing reduces detergent and water waste and improves repeatability; includes 8 standard dosing signals.

Customization and options
Various models and optional accessories are available to adapt the machine to different facilities. Factory customization and special models can be supplied on request (subject to surcharge).

Applications / Suitable businesses

• Restaurants and hospitality
• Gyms
• Hairdressers and beauty salons
• Campsites
• Schools, nurseries and hostels
• Dry cleaners and small laundries

Benefits

• Energy-efficient operation and consistent wash results
• Compact footprint and ergonomic design for confined spaces
• Connectivity and programmability via USB for cycle management
• Industrial-grade components packaged in a compact machine

Caractéristiques / spécifications techniques

• Series name: Compact range of washers
• Load capacity: approximately 8–10 kg
• High-spin floating extractor; no floor anchoring required
• Installation: levelling feet; optional plinths
• Standard: two water inlets
• Control: Touch Plus Control microprocessor; 4.3-inch touchscreen; support for 37 languages
• Connectivity: USB port for program import/export and software updates
• Dosing: intelligent manual weighing system; automatic dosing with 8 standard dosing signals
• Arrangement: stackable with dryers; column-mountable
• Target sectors: small businesses (hospitality, gyms, hairdressers, campsites, schools, etc.)
