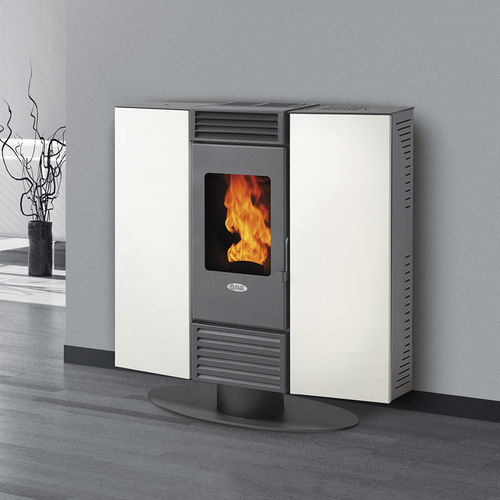

pellet heating stove / contemporary / steel / glass
XSC10V

{{requestButtons}}

Characteristics

  • Power source:

    pellet

  • Style:

    contemporary

  • Material:

    steel, glass

  • Other characteristics:

    ventilated

  • Heat output:

    8.5 kW

    Max.: 10 kW

    Min.: 3 kW

Description

Technical features:
- Weekly programmer with 4 ON and 4 OFF daily time settings;
- Ready for connection with external thermostat;
- Tempered glass front panels;
- Rear flue outlet, from top or side.
- Stand-by or modulation function;
- Integrated environment thermostat;
- Steel combustion chamber;
- Cast iron brazier (ventilated cleaning);
- Serial interface for technical user.

Optionals:
- GSM Kit, for SMS remote control;
- FUMES Kit, additional flue;
- AIR Kit, for canalizzation from top;
- Steel pedestal;
- IR remote control.


Specifications:
Overall heating capacity 10 kW
Rated heating capacity 3 min - 8,5 max kW
Efficency 91 - 93 %
Hourly consumption 0,6 min - 2,0 max kg/h
Approximate volume heated 150 - 255 mc
Tank capacity ~ 16 kg
Uptime with min settings 26 h
Uptime with max settings 8 h
Flue outlet diam. 80 mm
Air intake diam. 40 mm
Air flow rate 270 mc/h
Electric consumption 75 min - 190 max W
Dimensions WxHxD 1000 x 910 x 270 mm
Weight 130 kg

With stand:
Dimensions WxHxD 1000 x 1100 x 270 mm
Weight 140 kg
