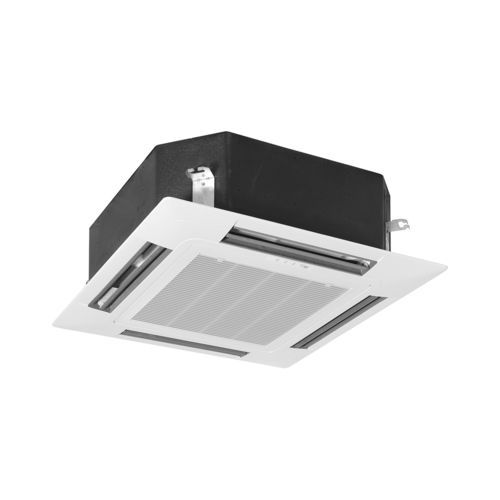

Ceiling air conditioner FCH 3613built-insplitcommercial
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling, built-in
- Type
- split
- Sector
- commercial
- Function
- reversible
- Certifications
- Class A
- Other characteristics
- inverter, cassette, outdoor
- Cooling power
Max.: 11.2 kW
Min.: 2.2 kW
- Heat output
Max.: 12 kW
Min.: 3 kW
- Noise level
47 dB, 52 dB
- Interior unit height
840 mm
(33 in)- Interior unit width
840 mm
(33 in)- Interior unit depth
310 mm
(12 in)- Exterior unit height
840 mm
(33 in)- Exterior unit width
948 mm
(37 in)- Exterior unit depth
340 mm
(13 in)
Description
Professional line 36000 btu inverter air conditioner, with recessed installation in the false ceiling. Energy Class A / A Cooling Power 9.5 kW (2.20 - 11.20) Heating Power 10.5 kW (2.50 - 11.80) Dehumidification 3.5 L / h Ventilation 1300 - 1600 mc / h Range in Cooling -10 ÷ 46 ° C Range in Heating -15 ÷ 24 ° C Piping (Liquid-Gas) 3/8 "- 5/8" Dimensions U.Int (LxHxP) 840x840x310 mm Weight U.Int 31 Kg Sound pressure U .Int 52 dB (A) Dimensions U.Ext (LxHxP) 948x840x340 mm Weight U.Ext 65 Kg Sound pressure U.Ext 47 dB (A) Discreet And Efficient The dimensions of the 4-way cassette units have been designed to reduce the overall dimensions of the unit are minimal. The dimensions are also extremely small for the panel. The movable fins have been designed to effectively control the air flow,
