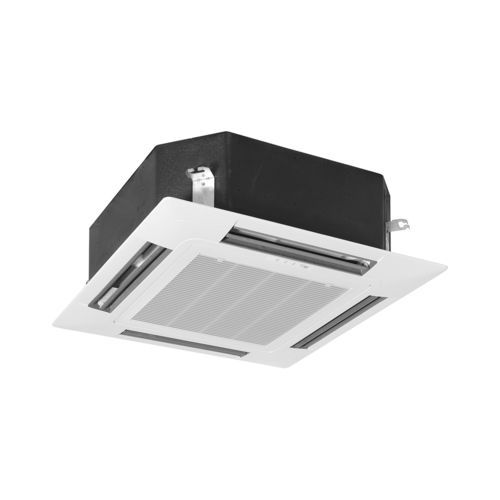

Ceiling air conditioner FCH 6018built-insplitcommercial
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling, built-in
- Type
- split
- Sector
- commercial
- Function
- reversible
- Other characteristics
- inverter, cassette, outdoor
- Cooling power
Min.: 6 kW
Max.: 15 kW
- Heat output
Min.: 6 kW
Max.: 15 kW
- Noise level
52 dB, 55 dB
- Interior unit height
290 mm
(11 in)- Interior unit width
95 mm
(4 in)- Interior unit depth
290 mm
(11 in)- Exterior unit height
1,250 mm
(49 in)- Exterior unit width
948 mm
(37 in)- Exterior unit depth
340 mm
(13 in)
Description
60000 btu professional line inverter air conditioner, with recessed installation in the false ceiling. Cooling power 13.6 kW (6.00 - 15.00) Heating power 14.5 kW (6.00 - 15.00) Dehumidification 4.8 L / h Ventilation 1300 - 1650 mc / h Cooling range -10 ÷ 46 ° C Heating range -15 ÷ 24 ° C Piping (Liquid-Gas) 3/8 "- 3/4" Dimensions U.Int (LxHxP) 95x290x290 mm Weight U.Int 31 Kg Sound pressure U.Int 55 dB ( A) Dimensions U.Ext (LxHxP) 948x1250x340 mm Weight U.Ext 96 Kg Sound pressure U.Ext 52 dB (A) Discreet And Efficient The dimensions of the 4-way cassette units have been designed to minimize the overall dimensions of the 'unit. The dimensions are also extremely small for the panel. The movable fins have been designed to effectively control the air flow,
