Glazed solar tube SRD-Z

Overview

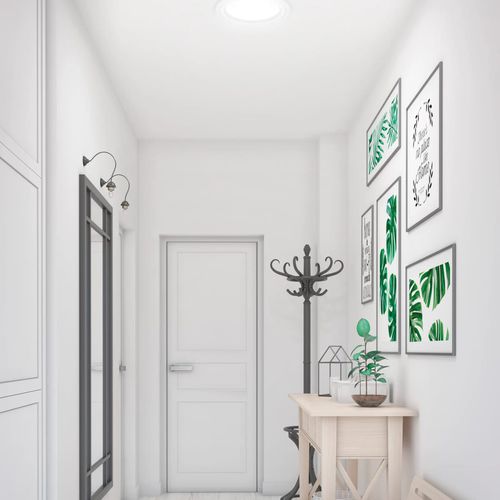

The SRD-Z is a domed sun tunnel engineered to deliver natural daylight into interior spaces of buildings with pitched roofs (roof pitch 15°–60°) and profiled roofing up to 45 mm. It uses a rigid, highly reflective aluminium light-transmitting tube, a weather-resistant domed exterior and an integrated prismatic diffuser to provide uniform daylight distribution to windowless rooms such as bathrooms, corridors and dressing areas.

Key features

• Introduce natural daylight into windowless interior spaces
• Designed for pitched roofs from 15° to 60° with profiled roofing up to 45 mm
• Rigid aluminium tube with high-reflectivity coating (up to 98%)
• Available diameters: 250 mm, 350 mm, 550 mm
• Integrated prismatic diffuser for even light distribution
• Optional LSO/SLO light kit for evening artificial lighting

Dome
The external dome is manufactured from UV-stabilised polycarbonate (3 mm) providing weather and UV resistance. Its rounded geometry promotes rain runoff and reduces soiling, protecting the internal tube and minimising maintenance requirements.

Light transmitting tube
The internal tube is rigid aluminium with a silver-based reflective coating offering up to 98% light conduction. Sealing tapes prevent light leaks and ingress of dirt. Standard tube lengths: 2100 mm for Ø250 and Ø350; 1800 mm for Ø550. Extension possible with SRM modules up to 12 m. SRK elbows are not included by default.

Light diffuser
The interior finish is an integrated prismatic diffuser mounted in the ceiling which diffuses incoming daylight evenly, ensuring comfortable illumination regardless of sun angle. An optional SLO/LSO light kit can be installed for conventional evening lighting.

External cladding and appearance
Outer cladding is corrosion-resistant sheet metal with integrated flashing (Typ Z) to ensure a watertight roof connection. Standard cladding colours: anthracite RAL 7016, grey-brown RAL 7022 and black RAL 9005 for a contemporary aesthetic.

Accessories

• Integrated flashing (Typ Z)
• Installation set and dome fastening set
• Optional: SLO/LSO light kit, SRK45 elbow (where applicable), SRM extension modules

Installation
Engineered for pitched roofs with profiled roofing materials. Installation pitch range: 15°–60°. Product includes sealing and mounting solutions to achieve airtight and watertight installation when installed with original accessories.

Maintenance and durability
Constructed for long-term performance with low maintenance. Dome material and metal cladding resist UV and weathering. The tube and sealing system reduce light leaks and limit dirt ingress.

Technical specifications

• Model: SRD-Z
• Type of sun tunnel: Domed for pitched roof
• Type of flashing: Typ Z (integrated flashing)
• Roof type and roofing material: Pitched roof, profiled roofing
• Available diameters: 250 mm, 350 mm, 550 mm
• Standard tube length: 2100 mm (Ø250 & Ø350), 1800 mm (Ø550)
• Roof opening size: 325 x 325 mm (for Ø250)
• Ceiling opening size: 310 mm (for Ø250)
• Tube type: Rigid aluminium with reflective coating
• Dome material: UV-stabilised 3 mm polycarbonate
• Thermal transmittance (U-value): 250 mm – 2.1 W/m²K; 350 mm – 2.0 W/m²K; 550 mm – 1.9 W/m²K
• Airtightness class: Class 4
• Resistance to downward loads: DL 2500
• Resistance to uplift loads: UL 3000
• Impact resistance (small hard body): no perforation
• Impact resistance (large soft body): SB 800
• Watertightness: Compliant
• Included / recommended accessories: Integrated flashing, Installation set, Dome fastening set; optional SRK45 elbow, SRM extensions, SLO/LSO light kit
• Installation pitch range: 15° – 60°
• Product weight (package): 9.947 kg
• Package dimensions (W x L x H): 0.31 m x 0.69 m x 0.875 m
