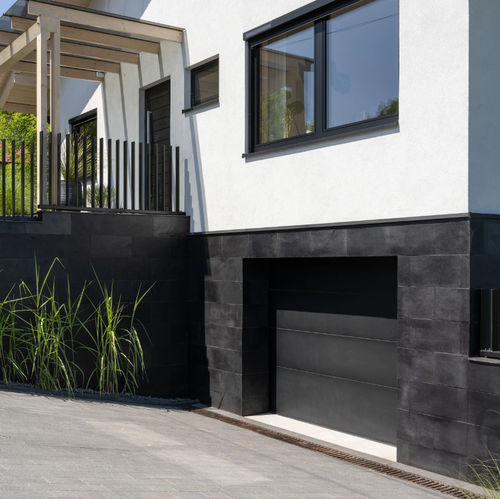

Sectional garage door PROFI+

galvanised steelzinc-plated steelEPDM

Overview
The PROFI+ garage door is built from 40 mm thick steel panels filled with high-density polyurethane (PUR) foam. Panels consist of two steel sheets with a tongue-and-groove joint and thermal seal to minimise thermal bridges. The whole structure is rigid, stable and airtight; the rated heat transfer coefficient for the complete door is U = 1.3 W/m2K, making it suitable for heated garages.

Torsion spring system
The door is available with different spring balancing systems adapted to the installation space: front torsion (F), rear torsion (R) and tension springs in guide rails (X). Springs are made of hardened, zinc-coated steel wire and are durability-tested for 20,000 operating cycles. A mechanical safety locking device prevents sudden door fall in case of spring failure. The spring configuration is selected based on garage depth and lintel height to ensure optimal balance and smooth operation.

Automation and drives
PROFI+ is compatible with typical garage door motor drives (examples: Sommer and Marantec) featuring soft start/stop and obstacle detection. Drive rail variants: toothed belt (quiet, high performance) and steel chain (robust for intensive use). Automation integrates with building systems and can be connected to FAKRO Smart Home via gateway. A radio remote control is included; optional photocells stop the door on obstacle detection.

Thermal protection and tightness
Peripheral and inter-panel EPDM rubber seals provide continuous sealing along side rails, top profile and bottom panel, reducing heat loss and noise. EPDM remains flexible across a wide temperature range. Insulation and tightness proven by class 3 air permeability and class 3 watertightness test results.

Durability and construction
Guide rails and fittings: 1.5 mm galvanised steel resistant to corrosion and deformation. Bearing rollers with vibration-damping bushings ensure smooth guidance; double roller system available for larger doors. All components fatigue-tested for at least 20,000 cycles.

Aesthetics and finishes
External panel surface finishes: woodgrain, smooth, deep mat, sand and wood-like textures. Paint coating resistant to UV, moisture and chemicals. Standard external colours include RAL 9016 (white), RAL 7016 (anthracite), RAL 8014 (brown), RAL 9006 (silver), RAL 9005 (black), plus decors: Golden Oak, Walnut, Winchester, Swamp Oak and Turner Oak. Interior face: RAL 9016 white.

Safety features
Mechanical spring breakage protection (locks shaft or guide mechanism on spring failure). Photocells (optional) and overload sensors in drives stop movement on obstacle detection. Segment profile designed to reduce risk of finger entrapment.

Key features (highlight)

• 40 mm thick PUR-filled steel panels
• Available spring systems: F (front), R (rear), X (guide-rail)
• Manual or automated operation
• Drive rail: belt or chain; compatible with major motor brands
• U-value for complete door: 1.3 W/m2K
• EPDM peripheral and inter-panel seals; class 3 air permeability and watertightness
• Components tested ≥ 20,000 cycles

Available dimensions table (Height [mm] vs Width [mm] - mounting system applicability)
Header: Height [mm] | 2400 | 2500 | 2600 | 2750 | 3000 | 3200 | 3500 | 4000 | 4250 | 4500 | 5000 | 6000
1875 | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, R | F
2000 | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, R | F
2125 | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, R | F
2250 | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, R | F
2375 | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, R | F
2500 | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, X, R | F, R | F, R | F, R | F
2625 | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F
2750 | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F
2875 | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F
3000 | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F, R | F

(table rows reproduce the product compatibility matrix as presented on the product page; F = front torsion, R = rear torsion, X = springs in guide rails)

Dimension rules and ordering sizes (summary)
DH – Opening height (ordering size): —
DW – Opening width (ordering size): —
HR – Lintel: HR ≥ 200 mm (general table) / HR ≥ 100 mm (X and some variants) / HR ≥ 130 mm for automatic in some configurations
SH – Guide rail system height: SH = DH + 60 mm
CH – Minimum garage height required: CH = DH + 200 mm
GW – Minimum garage width required: GW = DW + 180 mm
LS / RS – Side jamb space: LS ≥ 90 mm, RS ≥ 90 mm
PTH – Entrance size (height): PTH = DH − 175 mm (manual) / PTH = DH − 10 mm (automatic)
PTW – Entrance size (width): PTW = DW

Characteristics / Specifications techniques

• Panel thickness: 40 mm (two steel sheets + PUR foam core)
• Thermal insulation (U-value): 1.3 W/m2K for complete door
• Panel joint: tongue-and-groove with thermal seal
• Peripheral/inter-panel seals: EPDM rubber (ageing, UV and temperature resistant)
• Air permeability: class 3
• Watertightness: class 3
• Guide rails & fittings: galvanised steel, 1.5 mm thickness
• Rollers: bearing rollers with vibration-damping bushings; double roller system for larger sizes
• Spring systems: F (front), R (rear), X (guide-rail tension)
• Spring durability: rated ≥ 20,000 cycles; zinc-coated hardened steel wire
• Spring safety: mechanical breakage lock; shaft or guide locking on failure
• Drive compatibility: Sommer and Marantec (soft start/stop, obstacle detection); belt or chain drive rails
• Automation features: remote radio control (868 MHz), photocell obstacle detection, integration via gateway with FAKRO Smart Home
• Emergency power: optional battery backup for several cycles (optional accessory)
• Safety accessories: photocells (optional, IP54), internal bolt (optional)
• Available external finishes: woodgrain, smooth, deep mat, sand, wood-like
• Standard colours: RAL 9016, RAL 7016 (and wood-like anthracite), RAL 8014, RAL 9006, RAL 9005; additional wood decors
• Tested operational cycles for components: ≥ 20,000
• Minimum side jambs: LS/RS ≥ 90 mm
• Guide rail height formula: SH = DH + 60 mm; minimum garage height CH = DH + 200 mm
