plastic fastening system / for panels / interior plastic fastening system / for panels / interior - SL-F15A
  • Plastic fastening system / for panels / interior
{{requestButtons}}

Characteristics

  • Material:

    plastic

  • Applications:

    for panels

  • Other characteristics:

    interior

Description

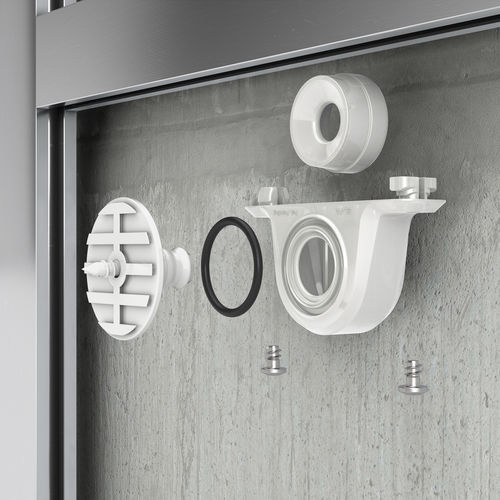

The Stratlock system from Fastmount revolutionizes how interior fit-out contractors install panels into aluminium framework. The Stratlock is a hidden panel fixing that uses a two-stage locking mechanism to provide 360° panel adjustment before locking perfectly into position.

Improving on the current industry standard of rigid panel mounting, the Stratlock combines flexible installation with a precision panel finish. Its innovation lies the twist-fit female with a 360° load chassis and a robust screw fix male which lock together to create a 15kg pull out load and high shear loading for removable heavy decorative panels.

The SL-F15A provides rapid installation of heavy panels into side-channel aluminium extrusion framework. Designed specifically for contract interior fit out applications, the SL-F15A is also suitable for superyacht deckhead panels.

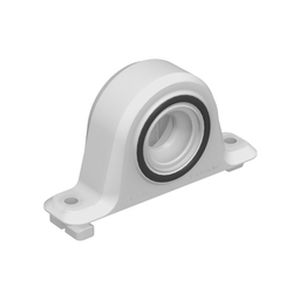

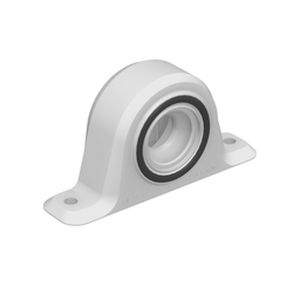

The female installs rapidly with a twist-lock function into the side channel, and can be screwed or riveted into its final position. Used with the SL-M15, the set provides 360° adjustment of panel before locking into place with a 15kg pull out load. Patent Pending.
Fits into channel dimensions: mouth: 7.5mm - 8.5mm, depth: min 7mm, wall thickness: 0.75mm - 1.2mm
