Solid-state timer 80 SERIES

electromechanicalmulti-functiontime delay

Overview
The 80 Series comprises multifunction and mono-function modular timers for DIN-rail panel installations. Available in multiple current ratings and configurations, the series covers a wide range of timing functions and includes solid-state output options and railway-certified variants.

Functions and features

• 17.5 mm module width
• Six selectable time ranges from 0.1 s to 24 h (varies by type)
• Multi-voltage supply options
• High input/output isolation
• Relays and solid-state outputs (SST) depending on model

Available Types (high-level)

• Type 80.01 / 80.01T – Modular timer, 16 A. NFC option and railway version available (T).
• Type 80.11 / 80.11T – Modular timer, 16 A. Railway version available; high input/output insulation.
• Type 80.21 – Modular timer with six time scales (0.1 s–24 h); high isolation.
• Type 80.41 / 80.41T – Modular timer, railway variants available; high isolation.
• Type 80.51 – Modular timer, typically 8 A; six time scales.
• Type 80.61 / 80.61T – Modular mono-function timer; some variants with four time ranges (0.05 s–180 s); railway version available.
• Type 80.71 – Modular Solid State Timer (SST) 1 A; 17.5 mm wide; six time scales.

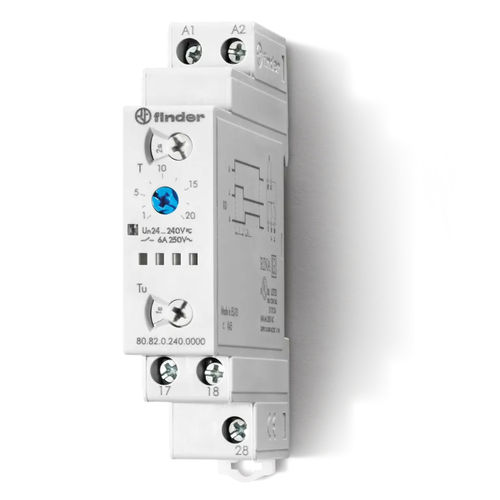

• Type 80.82 – Modular timer 6 A; 17.5 mm wide; rotary range selector and timing trimmer.
• Type 80.91 – Modular mono-function timer 16 A; 17.5 mm wide; six time scales.

Technical specifications

• Series name: 80 Series
• Module width: 17.5 mm (typical)
• Time ranges: up to six selectable scales from 0.1 s to 24 h (depends on model)
• Available output currents: examples include 1 A (SST), 6 A, 8 A, 16 A depending on model
• Function variants: multifunction and monofunction; SST option
• Adjustment: some models feature rotary range selector and timing trimmer
• Options: NFC parametrization on some models and railway-certified versions (suffix T)
• Electrical: multi-voltage inputs and high input/output isolation on selected types
