IP thermal camera AX8

boxsurface-mountedindoor

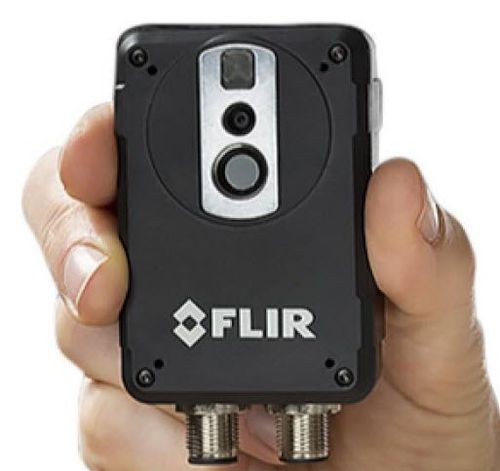

FLIR AX8 combines thermal imaging with a visual cameras in one small, affordable package for continuous temperature monitoring and alarming. The AX8 helps you guard against unplanned outages, service interruptions, and failure of electrical or mechanical equipment. Compact and easy to install, the AX8 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses. AUTOMATIC ANALYSIS AND ALARMS Streaming video output means the AX8 can provide live video of every installation plus automated alarming. INDUSTRIAL PROTOCOLS Ethernet/IP and Modbus TCP compliant so analysis and alarm results can be easily shared to a PLC. COMPACT AND EASY TO INSTALL The AX8 measures only 54 x 25 x 95 mm, making it easy to install in space constrained areas for uninterrupted condition monitoring. Ethernet Video Streaming - Yes (unauthenticated) EMC - EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission) Thermal Sensitivity/NETD - < 0.10°C @ +30°C (+86°F) / 100 mK Accuracy - ±2°C (±3.6°F) or ±2% of reading (+10 to +100°C at +10 to +35°C ambient) Alarm Functions - Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set Alarm Output - Digital Out, store image, file sending (ftp), email (SMTP), notification
