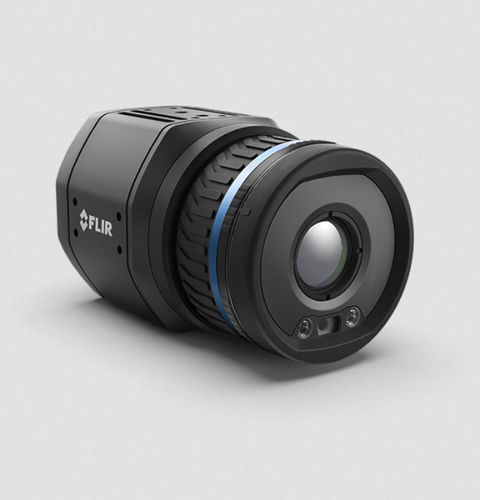

Fixed thermal camera A Series

boxsurface-mountedindoor

The FLIR Axxx-Series Thermal Smart Sensor Camera has the features automation solution providers need for complex monitoring applications, including critical infrastructure, product quality, and early fire detection. The Smart Sensor configuration includes multiple measurement tools and alarms while also providing computing-on-the-edge, with analytics performed at the camera level for immediate results. With a range of lens choices, motorized focus control, and unrivaled connectivity, A400/A500/A700 cameras offer unmatched power and flexibility. Easy configuration allows you to tailor this monitoring system to your company’s quality, productivity, maintenance, and safety needs. Includes options to adjust measurements and alarms based on a reference temperature source (advanced) Edge analytics with features such as a polygon function (advanced) help you make immediate, informed decisions Provides exceptional image quality with up to 640 × 480 (307,200 pixels) and superior measurement accuracy (<±2°C) Highlighted Digital I/O connector type - M12 12-pin A-coded, Male (shared with external power) Digital Inputs - 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V Digital Output Purpose - A400-Standard, A700-Standard: • As a function of alarm, output to external device • Fault (NC) A500-Standard: Programmatically set; fault (NC) Advanced: • As a function of alarm, output to external device • Fault (NC) Digital Outputs - 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
