Opening detector DCM
surface-mountedindustrialcommercial

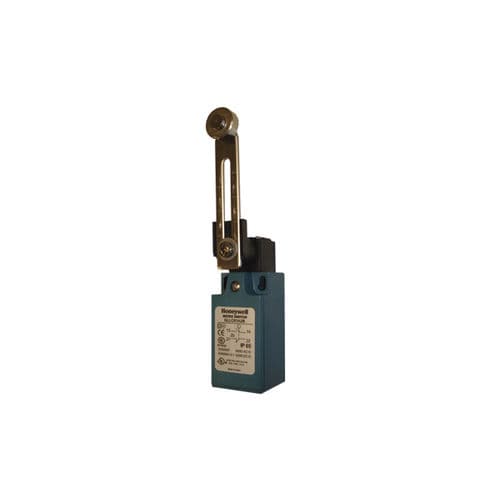

Opening detector - DCM - flowair - surface-mounted / industrial / commercial
Opening detector - DCM - flowair - surface-mounted / industrial / commercial
Add to favorites
Compare this product

Characteristics

Type
opening
Installation
surface-mounted
Sector
industrial, commercial
Other characteristics
for doors and windows, industrial door

Description

Mechanical door switch DCm Door switch transmits on/off signal to the curtain control system when the doors open or close. Operating temperature range - from -10 to 80oC Protection degree - IP65 Material - plastic Connection cable length - none Valves - 1 x NC i 1 x NO Contacts load - resistance - 3 (10) A Max. contacts voltage - 300 VAC or 250 VDC
